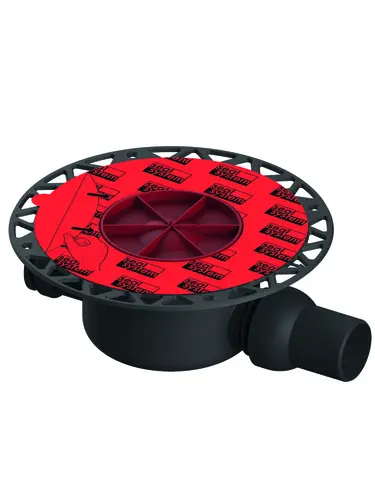

TECEdrainpoint S drain, standard, with Seal System universal flange, DN 50

• TECEdrainpoint S
• 1 x drain
• Standard

Product details:

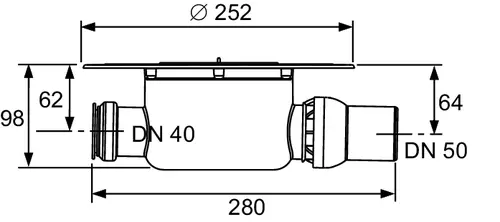

• Floor drain horizontal, DN 50
• standard, made of plastic (PP)
• with universal flange for connecting bonded waterproofing
• (according to DIN 18534)
• or clamping flange connections
• with ball joint and DN 40 lateral inlet
• incl. sealing plug
• Removable odor trap
• Water seal height = 50 mm (in accordance with EN 1253)

Drainage capacity in accordance with EN 1253 at 10/20 mm backwater height above grate:

• at minimum height of the extension piece: 0.52/0.89 l/s
• at maximum height of the top section: 0.64/1.35 l/s

Note:

Delivery includes construction period protection cover, construction period protection foil and installation instructions.
