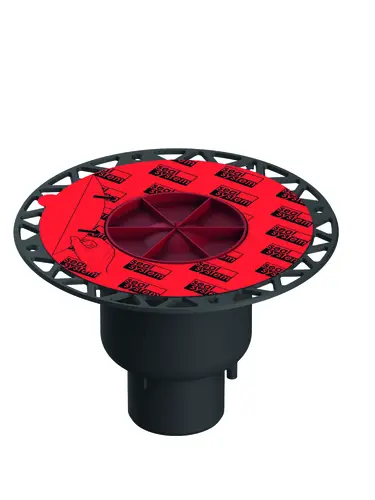

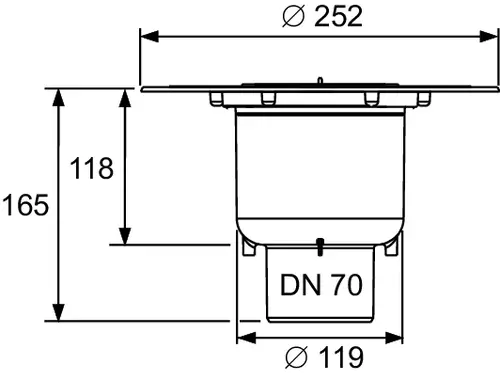

TECEdrainpoint S drain, vertical, with Seal System universal flange, DN 70

• TECEdrainpoint S
• 1 x drain

Product details:

• Vertical floor drain, DN 70
• made of plastic (PP)
• tested according to EN 1253
• with universal flange for connecting bonded waterproofing
• (according to DIN 18534)
• or clamping flange connections
• Removable odor trap
• Water seal height = 50 mm (in accordance with EN 1253)

Drainage capacity in accordance with EN 1253 at 10/20 mm backwater height above grate:

• at minimum height of the extension piece: 0.47/1.81 l/s
• at maximum height of the extension piece: 0.63/1.84 l/s

Note:

Delivery incl. construction period protection cover, construction period protection foil and installation instructions.

Required core drill hole: 120 mm diameter
