- Applications
- For automatic flushing of urinals
- Für Geberit mounting elements for urinal with front operation
- For installation in Geberit urinal control kits (from year of construction 2009)

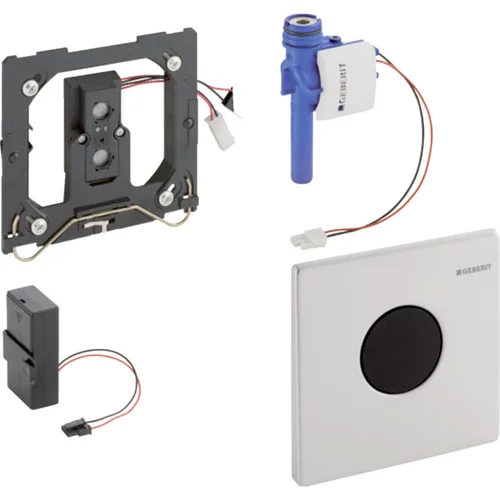

- Scope of supply
- Cover plate Mambo, with IR window
- Infrared control, pre-mounted on mounting frame
- Solenoid valve
- Battery box
- 2 alkaline manganese batteries type AA 1.5 V
- fastening material
- Technical data
- Battery type: Alkali (1.5 V AA)
- Lifetime battery included: ~ 2 years
- Protection class: IP45
- operating voltage: 3 V DC
- Power consumption: < 0.5 W
- flow pressure: 100-800 kPa
- Maximum test pressure water: 1600 kPa
- Maximum test pressure air / inert gas: 300 kPa
- Relative humidity: < 100 %
- Maximum water temperature: 30 °C
- Flow at 100 kPa without flow limiter : 0.3 l/s
- flow at 100 kPa with flow limiter : 0.18 l/s
- Calculation flow rate: 0.22 l/s
- Minimum flow pressure for calculated flow rate: 100 kPa
- interval flushing setting range: 1-168 h
- interval flushing Factory setting: 24 h
- interval flushing time Setting range: 3-180 s
- interval flushing time factory setting: 5 s
- dwell time adjustment range: 3-15 s
- dwell time Factory setting: 7 s
- Spültime Setting range: 1-15 s
- Spül time Factory setting: 7 s
- Properties
- Cover plate with safety latch
- Safe IR distance detection
- IR sensor self-adjusting
- Water-saving hybrid mode adjustable
- Spül time manually adjustable Dynamic Spül time adjustment
- Preset adjustable
- Convertible to operation with lid urinal
- low battery warning
- Valve closing function with empty battery
- Functions can be set and interrogated with Geberit service mobile phone
- Spülausl;sung ücan be deactivated via Geberit Clean mobile phone
- Cavity quantity can be reduced to 0.5 l per flush via the throttle screw of the body shell kit
- Fitting group II according to DIN 4109
- Colour: chrome plated
Manufacturer:
Geberit International AG
Schachenstrasse 77
CH-8645 Jona
Person responsible:
Geberit Vertriebs GmbH
Theuerbachstr. 1
DE-88630 Pfullendorf
E-mail:
sales.de@geberit.com
**Badquadrat Shop Price without additional discount
Artikel zum Warenkorb hinzugefuegt
Geberit urinal control with electronic flush release, battery operation, cover plate Mambo
1-2 Weeks
