description

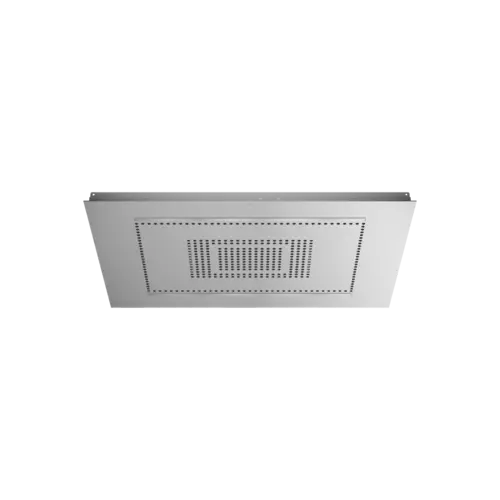

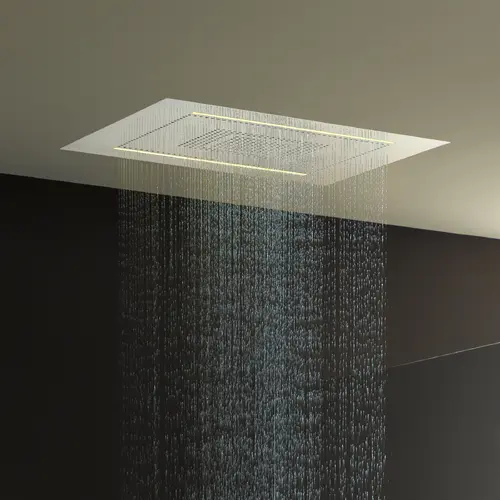

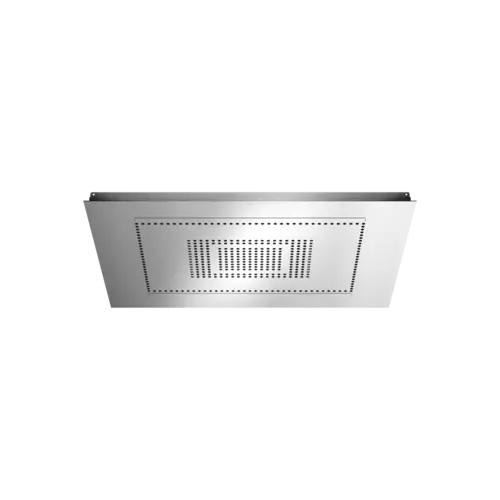

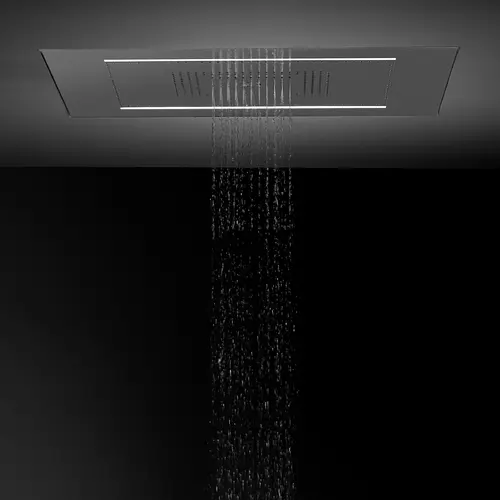

- Dornbracht RAIN SKY M
- 1x rain panel for ceiling installation
- with 3 different jet types
- overhead shower 200 x 160 mm, 99 jets
- body shower 360 x 280 mm, 142 jets
- rain curtain 720 x 540 mm, 124 nozzles

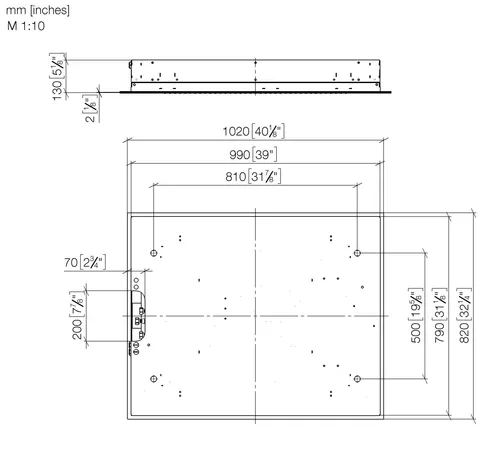

- Cover plate, stainless steel 1020 x 820 x 2 mm
- 3x flexible connection hose 1/2 - IT
- 4x heavy duty anchor M10

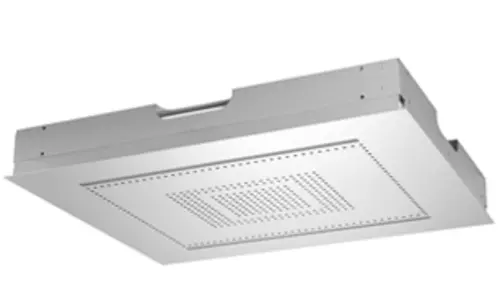

- pre-assembled stainless steel housing 990 x 790 x 128 mm
- 2 light joints, electronic ballast, fluorescent tubes T 5, 39 Watt - light color 830
- 2 hinges and catch chains
- Technical data:
- Flow rate minimum: 35 l/min (all three rain types together)
- Flow rate at 3 bar flow pressure in combination with xTool: 43l/min
- Minimum flow pressure: 2 bar
- Max. Flow pressure: 4 bar
- Weight 50 Kg
- Electrical connection: 220-240V, AC/DC, OHz, 50-60 Hz, 88 Watt
- Protection class IP 65
