• Hansa Hansacompact

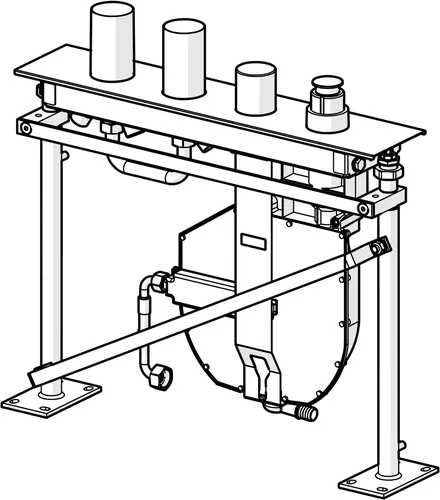

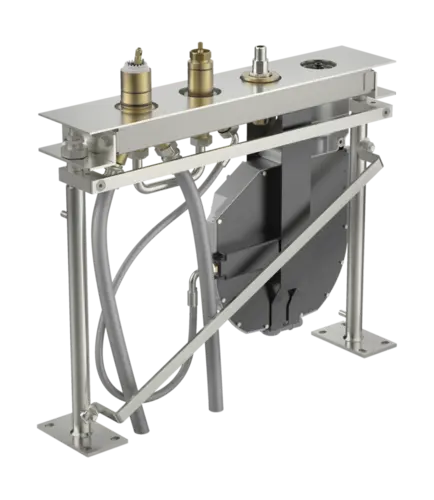

• 1x concealed installation body
• suitable for tubs
• DN20
• 600 mm
• 4 - hole (tile edge installation)
• Intrinsically safe against backflow in domestic use (according to DIN EN1717)
• Leakage water drain in roll box with backflow protection
• Installation depth: 495 - 650 mm
• Hot water supply: Maximum +70°C
• Rotary diverter
• pressure independent
• Temperature limiter
• Hot water lock adjustable (included in delivery)
• Connection via flexible pressure hoses (G3/4)
• Safety device (EN1717): EB
• ø 4.0 control cartridge with ceramic sealing discs for water and temperature adjustment
• Components: Rollbox with automatic hose return

Accessories: Extension set, 30 mm, 59914626 / Extension set, 30 mm 59914627 (to be ordered separately)
