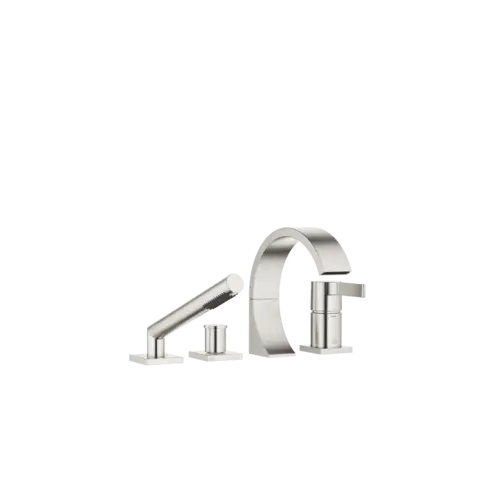

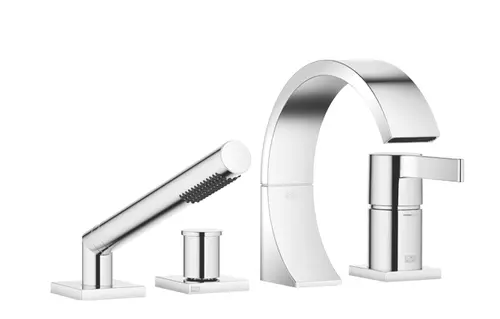

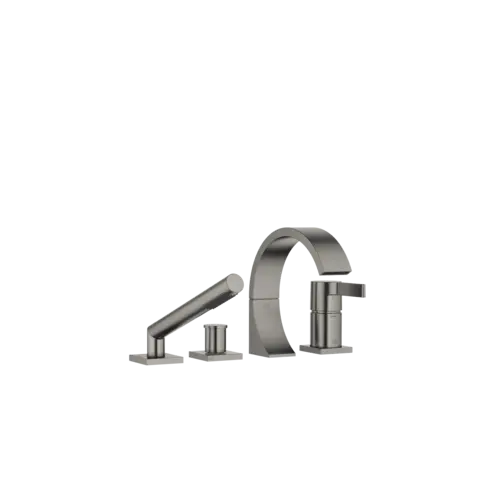

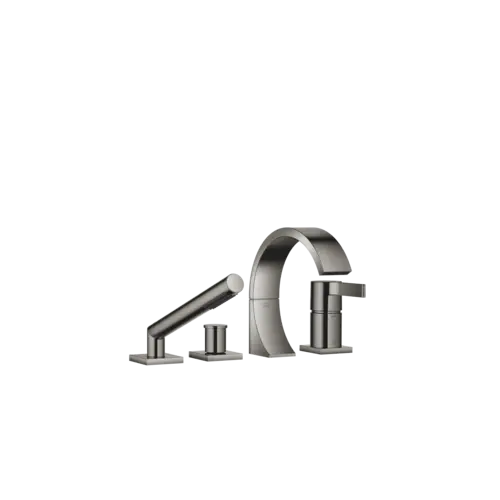

- Dornbracht CYO
- 1x four-hole bath mixer for bath or tile edge installation

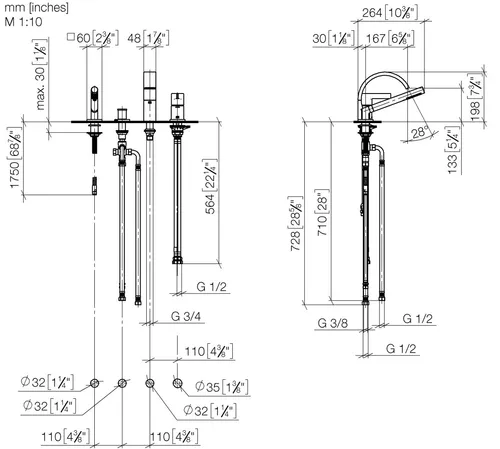

- Projection 167 mm
- Hose shower set: normal jet
- Spout: rectangular normal jet
- Shower set with anti-limestone system
- automatic bath tub/shower head changeover
- height of faucet 198 mm
- height to aerator 133 mm
- diameter of spout 28 mm
- Bore diameter of shower set 32 mm
- Rosette for mixer 60 x 60 mm
- Rosette for shower set 60 x 60 mm
- Metal shower hose 1750 mm with integrated anti-twist device
- Flow rate max. 23,8 l/min at 3 bar flow pressure
- Flow rate of the shower set max. 6,8 l/min
- Intrinsically safe against backflow
Manufacturer:
Dornbracht AG und Co. KG
Köbbingser Mühle 6
DE-58640 Iserlohn
E-mail:
mail@dornbracht.com
**Badquadrat Shop Price without additional discount
Artikel zum Warenkorb hinzugefuegt
Dornbracht CYO bath tub four-hole mixer for bath tub rim or tile rim installation, projection 167 mm, 27632811
2 Weeks
