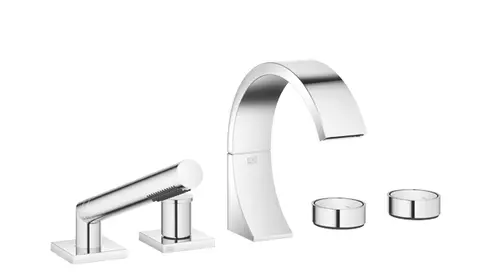

Dornbracht CYO five-hole bath mixer for bath or tile edge installation, 167 mm projection

Item No. 27523811
Further information

3.786,46 €* 1.771,32 € **

Shipping index: 150 Points
incl. 19% VAT in addition

Variants

chrome 27523811-00 1-2 Weeks 1.771,32 €

Platinum Matt 27523811-06 1-2 Weeks 2.834,16 €

brushed brass 27523811-28 1-2 Weeks 3.507,22 €

dark platinum matt 27523811-99 1-2 Weeks 3.188,37 €

1-2 Weeks

by parcel service

- +

Further information

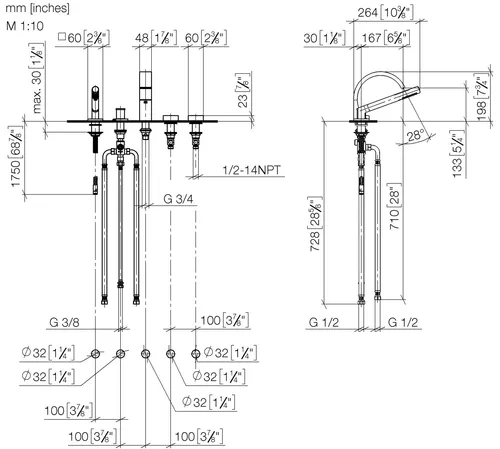

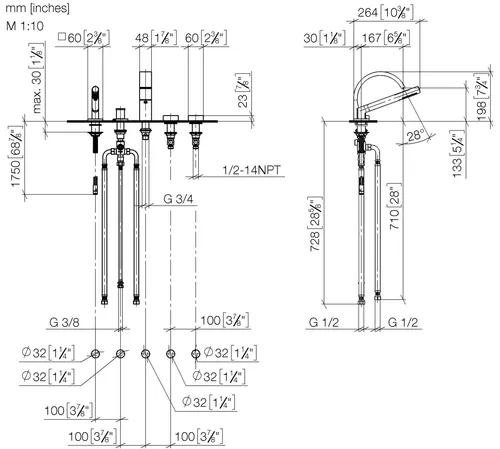

Product information

Dornbracht CYO
1x five-hole bath mixer for bath tub rim or tile rim installation
projection 167 mm
rectangular air-enriched jet
height of the faucet 198 mm
height to aerator 133 mm
shower set: normal jet
hose shower set with anti-limestone system
Bore diameter spout mm
Bore diameter side valve mm
Rosette for shower set 60 x 60 mm
Handle Ã 60 mm
Metal shower hose 1750 mm with integrated anti-twist device
flow rate max. 23.8 l/min at 3 bar flow pressure
flow rate of shower set max. 6,8 l/min
The handle inserts must be ordered separately to the fittings.
