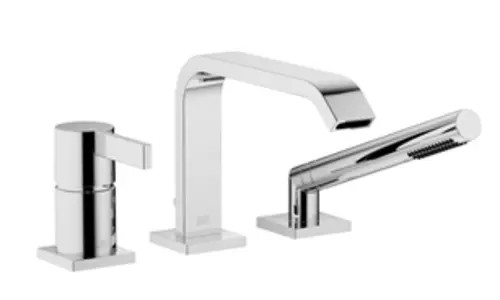

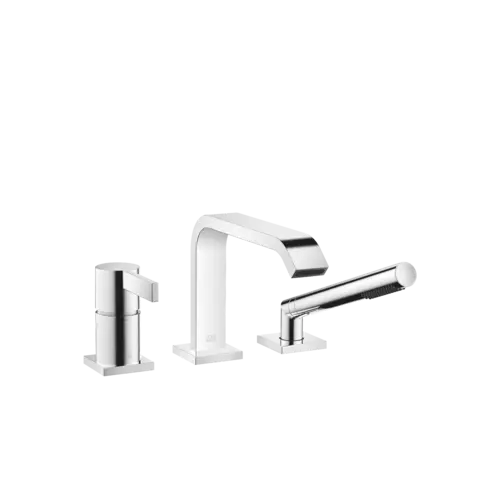

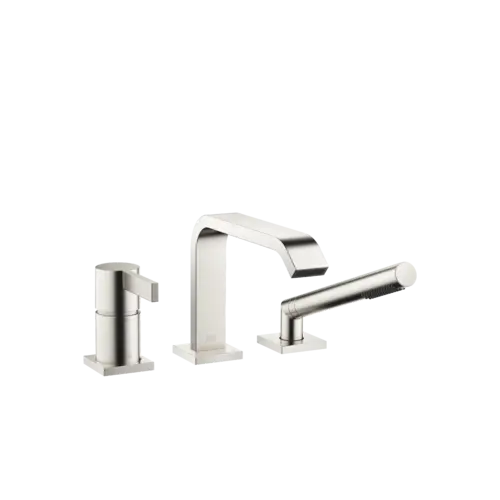

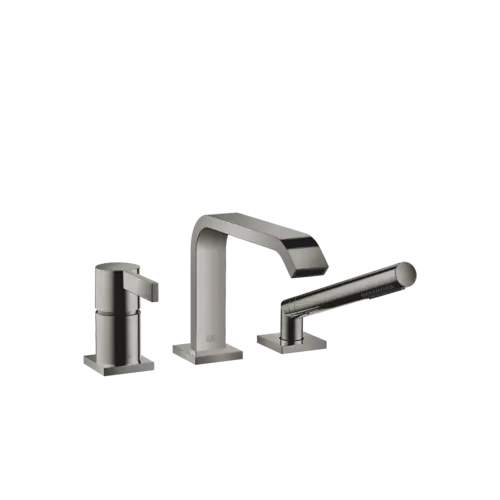

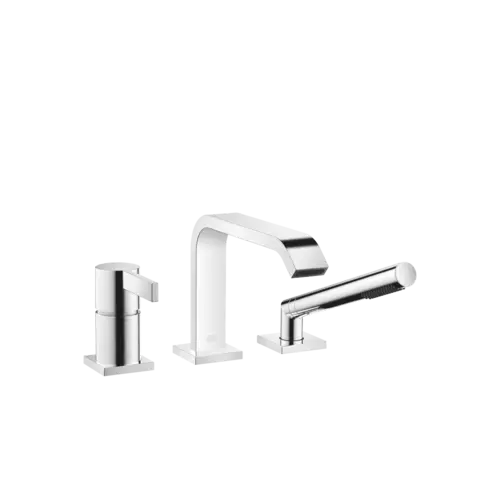

Dornbracht IMO three-hole single-lever bath mixer for bath rim or tile rim installation, projection 224 mm
- Item No. 27412670
- Further information
2.562,67 €*
1.264,46 €
**
Shipping index: 300 Points
incl. 19% VAT in addition
Recommended products
Further information
Product information
- Dornbracht IMO
- 1 x three-hole single-lever bath mixer
- for bath rim or tile rim installation
- Projection 224 mm
- Spout: rectangular normal jet
- Hose shower set: normal jet
- Hose shower set with anti-limescale system
- Automatic bath/shower diverter

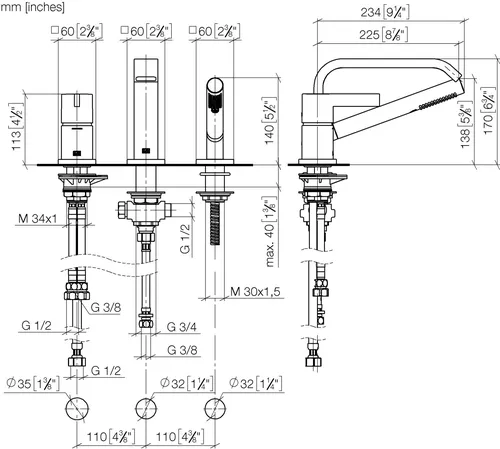

- Tap height 110 mm
- Height to aerator 138 mm
- Bore diameter of spout 32 mm
- Bore diameter of single lever mixer 35 mm
- Bore diameter hose shower set 32 mm
- Rosette for mixer 60 x 60 mm
- Rosette for spout 60 x 60 mm
- Rosette for hose shower set 60 x 60 mm
- Metal shower hose 2250 mm with integrated anti-twist protection
- Flow rate max. 19.2 l/min at 3 bar flow pressure
- Max. flow rate for hose shower set 6.8 l/min
- In order to compensate for the disproportionate increase in material costs, we are unfortunately forced to charge a precious metal surcharge of ten percent for this item from 1 June 2020.
- The surcharge is not included in the displayed price.
- Intrinsically safe against backflow.
