description

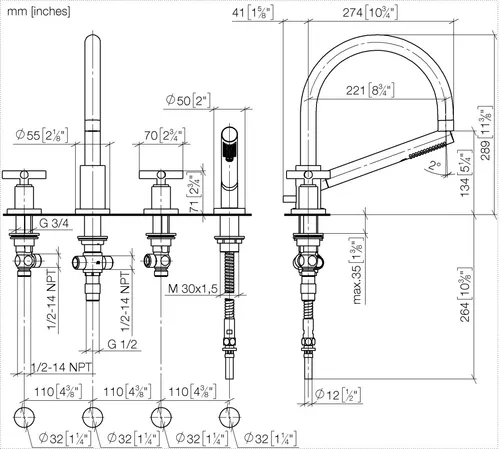

- Projection 220 mm
- Hose shower set: normal jet
- Spout: round air-enriched jet
- Shower set with anti-limestone system
- automatic bath/shower diverter
- Faucet height 290 mm
- height to aerator 135 mm
- Bore diameter spout 32 mm
- Bore diameter side valves 32 mm
- Bore diameter hose shower set 32 mm
- Rosette for spout Ø 55 mm
- Rosette for hose shower set Ø 50 mm
- Rosette for side valve Ø 55 mm
- Metal shower hose 2250 mm with integrated anti-twist protection
- Flow rate max. 23.5 l/min at 3 bar flow pressure
- Flow rate of shower set max. 6.8 l/min
- Also available in 260 mm or 300 mm projection on request (x-TRA SERVICE).
- Intrinsically safe against backflow.
