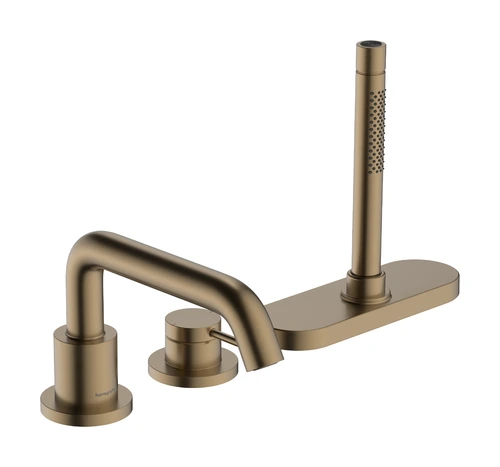

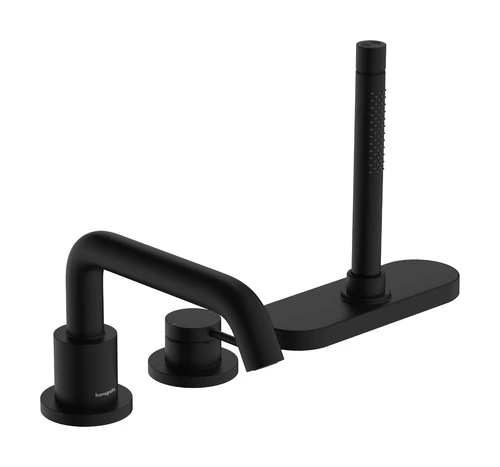

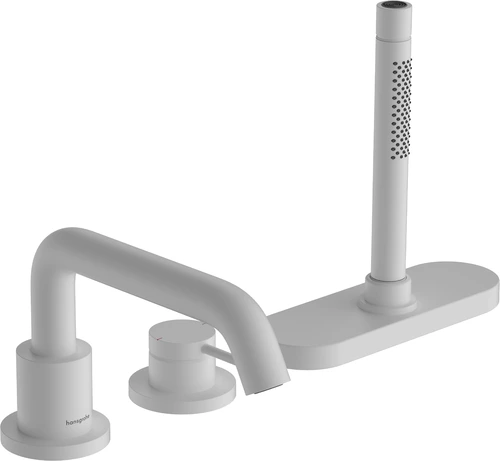

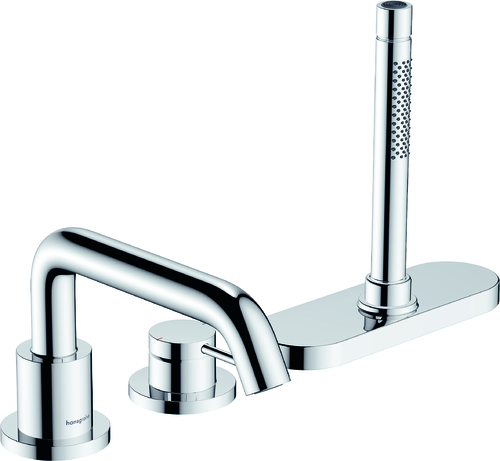

• hansgrohe Tecturis S
• 1 x Single lever bath rim mixer

Product details:

• two consumers
• 3-hole, bath rim installation
• Jet type (fitting): Normal jet
• Spray type (hand shower): PowderRain
• with sBox: for quiet, smooth-running and protected hose routing
• with ceramic mixing system
• diverter with automatic reset
• with backflow preventer
• Intrinsically safe against backflow, in accordance with DIN EN 1717

Technical data

• Projection: 194 mm
• Maximum flow rate at 3 bar: 20 l/min.
• Maximum extension length of hand shower: 1.45 m
• Connection size: DN15
• min. Operating pressure: 1 bar
• max. operating pressure: 10 bar
• Connection type: Base body for 3-hole single-lever bath rim mixer (item no.: 13481180)
• Base body not included in scope of delivery, please order separately.

Scope of delivery:

• 3-hole single-lever bath rim mixer, hand shower
• shower holder, shower hose, hose box (sBox)
• Fastening material and installation instructions
