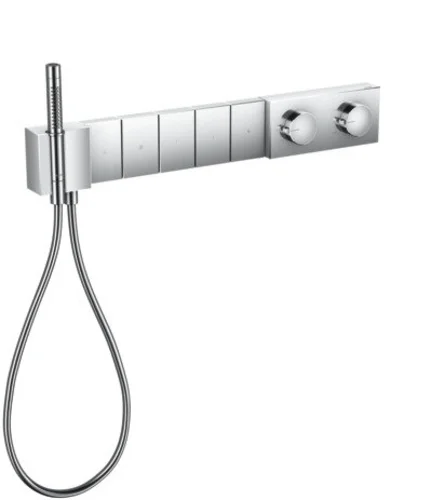

- Consists of: Thermostat module, shower holder, hand shower, shower hose
- depending on volume flow and installation situation approx. 50% flow reduction and integrated shut-off function
- 5 Consumer
- Simultaneous use by several consumers
- Switching 5 consumers on/off via Select button
- maximum flow rate at 3 bar: 37.9 l/min
- Flow rate at 3 bar: 37.9 l/min
- Flow rate connection hand shower (at 3 bar): 14 l/min
- Thermostat cartridge, Select valve
- min. Operating pressure: 1 bar
- max. operating pressure: 10 bar
- Safety lock at 40° C
- Temperature limit adjustable
- Hose nut: for shower hoses with cylindrical nut on both sides
- Connection type: Basic body
- Noise group: I
- Flow class: B
- Thermostat is supplied with Rain large, hand shower, mono, PowderRain small and PowderRain large buttons
- P-IX 29580/IB
Consisting of
- Metal effect shower hose 1.25 m (# 28282000)
This product is not available in brushed special surfaces
Manufacturer:
Hansgrohe Deutschland Vertriebs GmbH
Auestr. 5-9
DE-77761 Schiltach
E-mail:
info@hansgrohe.de
**Badquadrat Shop Price without additional discount
Artikel zum Warenkorb hinzugefuegt
hand-sized AXOR Edge thermostat module Select 680/100 concealed for 5 consumers
1-2 Weeks
