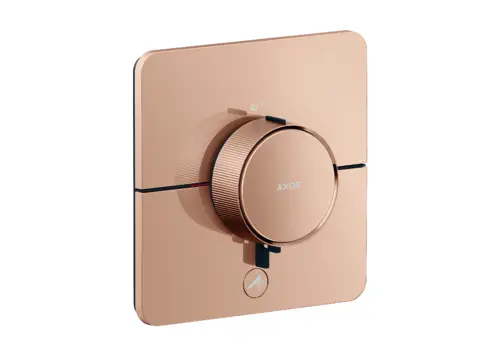

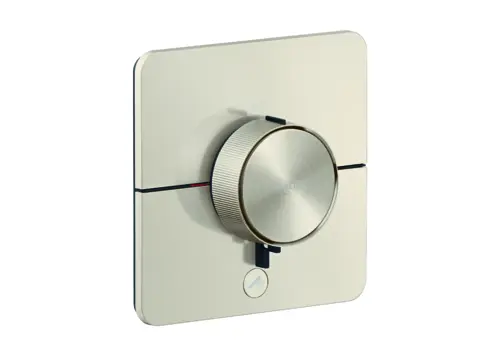

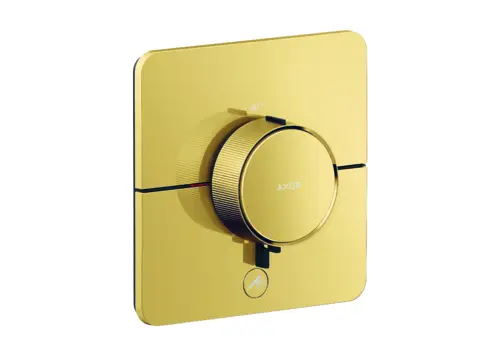

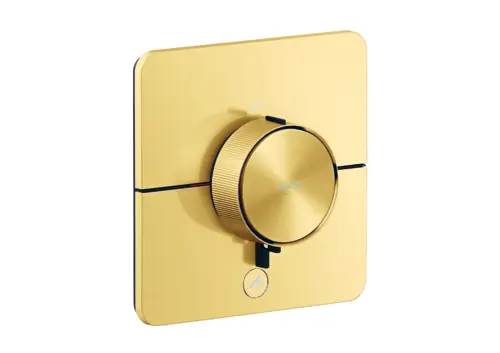

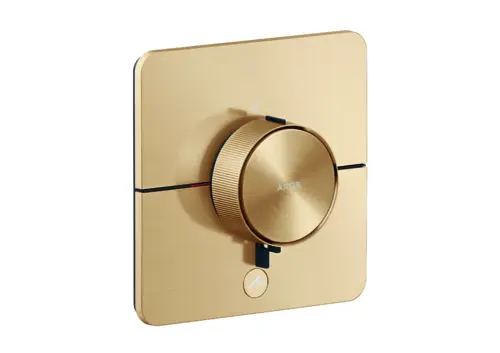

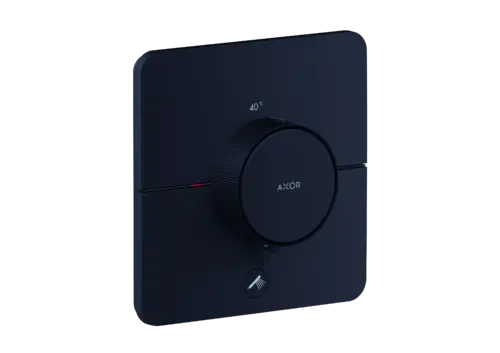

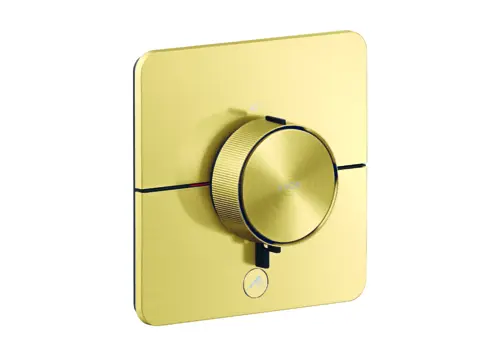

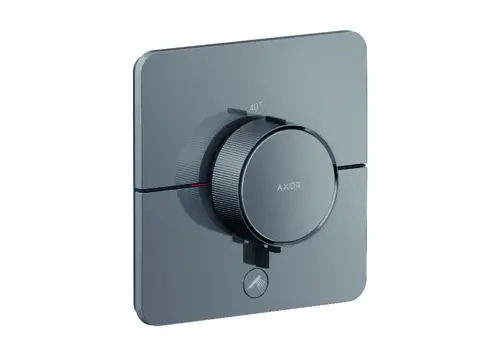

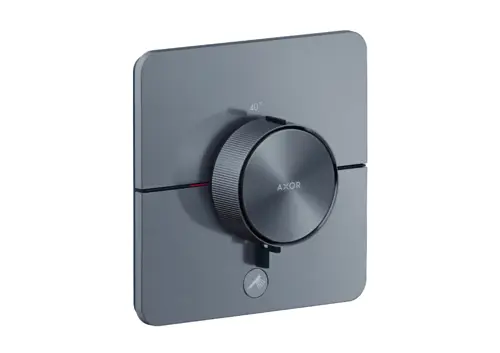

• Hansgrohe AXOR ShowerSelect ID
• 1 x thermostat

Product details

• softsquare shape, HighFlow
• flush-mounted installation
• one consumer and one additional outlet
• Switching a consumer on/off with the Select button
• Temperature control via vertical handle structure
• with haptic feedback of the thermostat handle
• Volume control with stop function
• Start/stop valve for operating the consumer
• Thermostatic cartridge for regulating the temperature
• Flat rosette for more space in the shower
• Rosette can be subsequently adjusted by +/- 3
• Simple installation thanks to pre-assembled function block
• Handles always at the same height regardless of the installation depth of the base unit
• Adjustable temperature limiter
• with safety lock at 40°C
• Thermal disinfection possible
• with buttons: hand shower, bath, whirl, side shower and on/off
• Material: metal

Technical details

• max. flow rate at 3 bar: 32.8 l/min.
• Flow rate upper outlet: 23 l/min.
• Flow rate lower outlet: 23 l/min.
• min. Operating pressure: 1 bar
• max. operating pressure: 10 bar
• Connection type: Basic body iBox universal 2
• Noise group: I
• Flow class: B
• DVGW NW-6509BQ0587
• P-IX 38568/IB

Note: Basic body iBox universal 2 (item no.: 01400180) not included in scope of delivery, please order separately.
