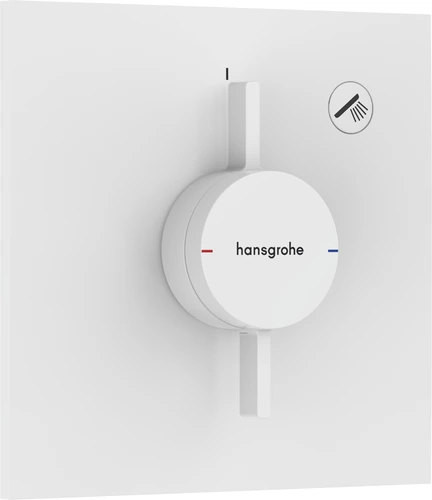

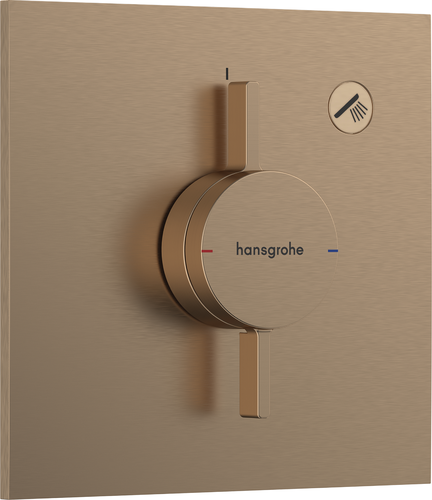

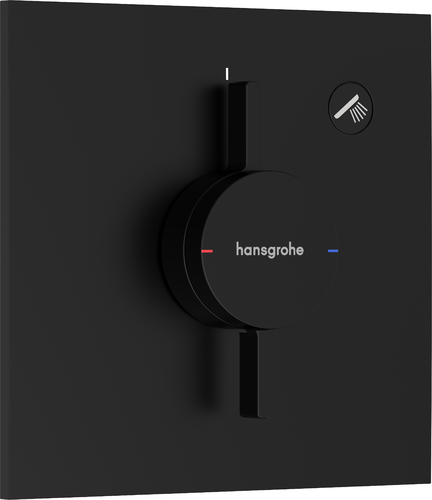

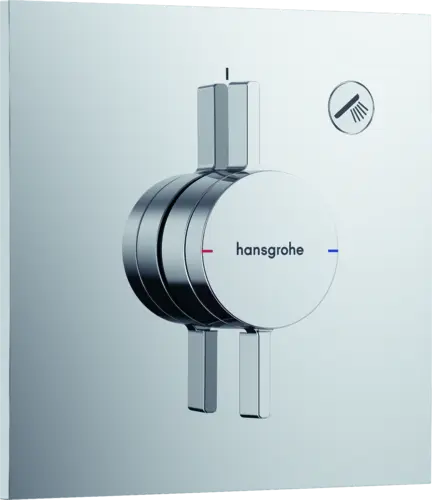

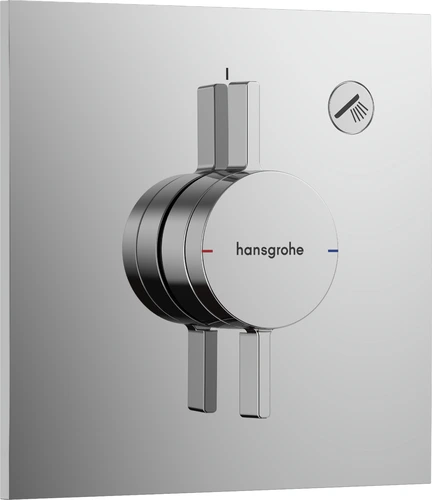

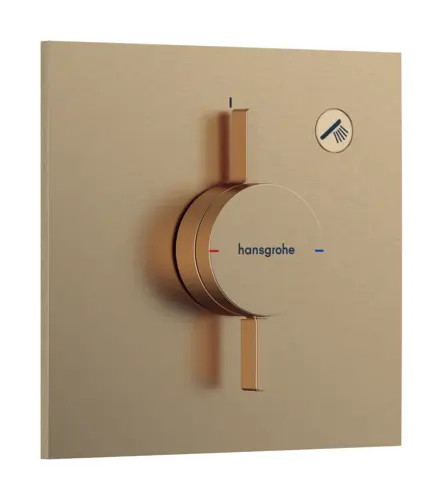

hansgrohe DuoTurn E mixer, concealed, 1 consumer, square rosette

• hansgrohe DuoTurn E
• 1 x mixer

Product details:

• for 1 consumer
• for volume control
• ceramic mixing system for temperature control
• 1/2" ceramic shut-off valve
• Flat rosette - more space in the shower
• pre-assembled function block - easy installation
• Handles always at the same height
• independent of the installation depth of the basic body
• angular rosette - can be subsequently adjusted by +/- 3°
• Material (rosette): Plastic
• Material (handles): Metal
• Mixer is supplied with on and off buttons

Technical data:

• max. flow rate at 3 bar: 29.5 l/min.
• Rosette size: 155 x 155 mm
• min. Operating pressure: 1 bar
• max. operating pressure: 10 bar
• Noise group: I
• flow class: B
• Connection type: Basic body iBox universal 2 (item no.: 01500180)
• Base body not included in scope of delivery, please order separately.

Scope of delivery:

• Mixer, function block
• Fastening material and installation instructions
