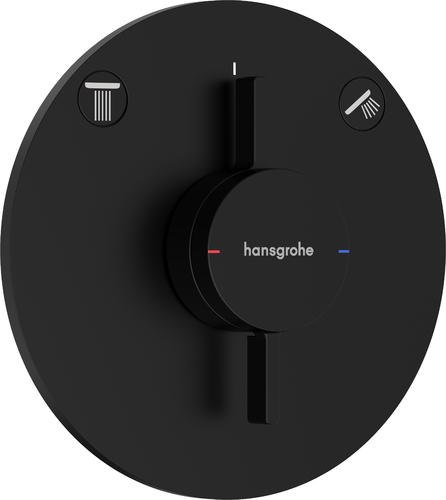

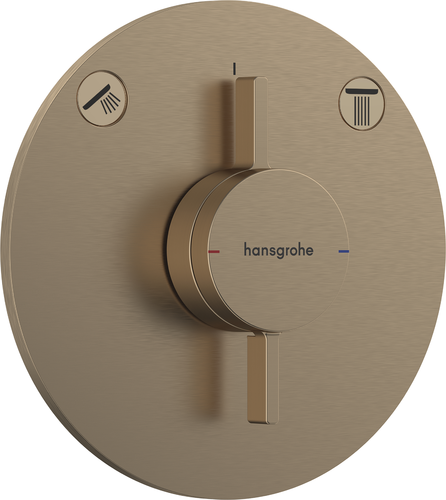

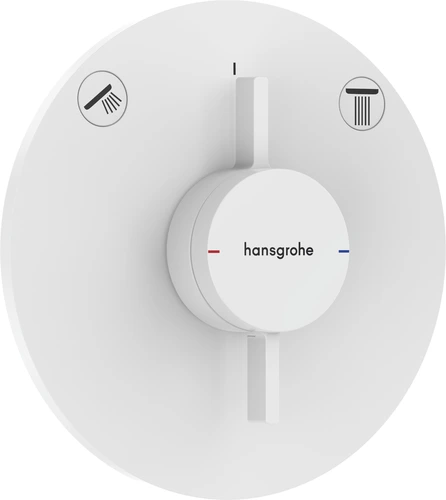

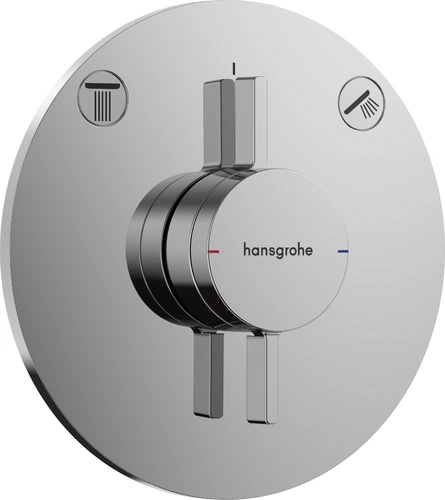

hansgrohe DuoTurn S mixer, concealed, 2 consumers, 2 functions, round rosette

• hansgrohe DuoTurn S
• 1 x mixer

Product details:

• for 2 consumers
• with flow control and diverter
• Ceramic mixing system for temperature control
• On/off diverter valve
• Flat rosette - more space in the shower
• Pre-assembled function block - easy installation
• Handles always at the same height
• independent of the installation depth of the basic body
• round rosette - can be subsequently adjusted by +/- 3°
• Material (rosette): Plastic
• Material (handles): Metal
• Mixer is supplied with the Rain small and large buttons,
• as well as with the hand shower, splash and bath buttons

Technical data:

• max. flow rate at 3 bar: 31 l/min.
• flow rate for hand shower at 3 bar: 24 l/min,
• Rosette size: Ø 155 mm
• min. Operating pressure: 1 bar
• max. operating pressure: 10 bar
• Noise group: I
• flow class: C, B
• Connection type: Basic body iBox universal 2 (item no.: 01500180)
• Base body not included in scope of delivery, please order separately.

Scope of delivery:

• Mixer, function block
• Fastening material and installation instructions
