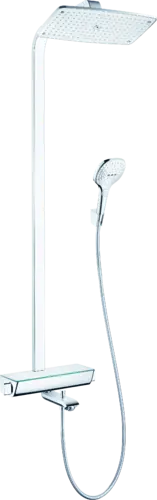

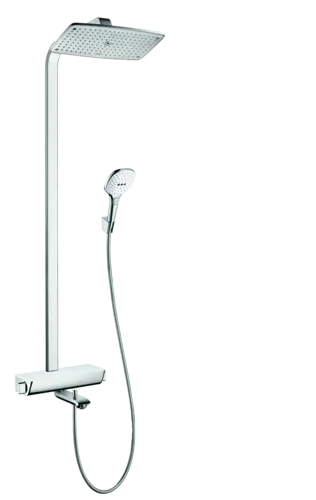

hansgrohe Raindance E Showerpipe 360 1jet, with bath thermostat, shower bar 1400mm, 3 consumers

• hansgrohe Raindance E
• 1 x Showerpipe 360

Product details

• Wall mounting, surface-mounted installation
• Set consisting of:
• Overhead shower, hand shower, bath thermostat
• Shower base, shower hose and shower holder
• Raindance E 360 Air overhead shower
• Shower head size: 360 x 190 mm
• 1jet spray type (overhead shower): RainAir
• with ball joint: head shower adjustable in angle
• Spray types (hand shower): RainAir, Rain, Whirl
• Changeover hand shower via Select button
• with shelf (safety glass)
• Shower bar width: 44 mm
• Shower arm length overhead shower: 380 mm
• Total shower bar length: 1400 mm
• Ecostat Select thermostat
• Safety lock at 40°C
• Adjustable hot water limiter
• CoolContact: prevents the housing from heating up
• Intrinsically safe against backflow
• QuickClean: minimal cleaning effort
• 3 consumers
• AirPower: water jet enriched with air
• for a full water jet with lower water consumption
• Suitable for instantaneous water heaters
• flow rate RainAir jet at 3 bar: 15 l/min.
• max. flow rate for showerpipe at 3 bar: 20 l/min.
• Minimum flow pressure: 1 bar
• min. Operating pressure: 1 bar
• max. operating pressure: 10 bar
• Connection size: DN15
• Connection thread: G ½
• Pitch: 150 ± 12 mm
• Note: adapter # 02026000 is required for installation on existing G ¾ connection
