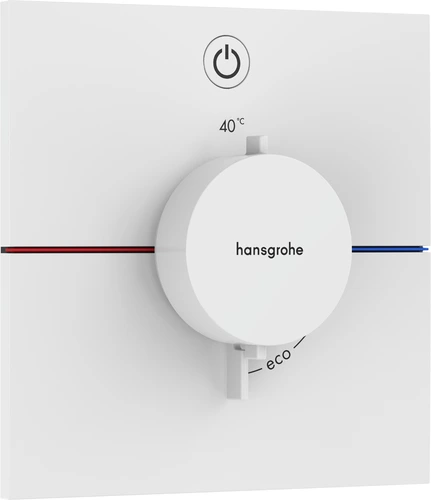

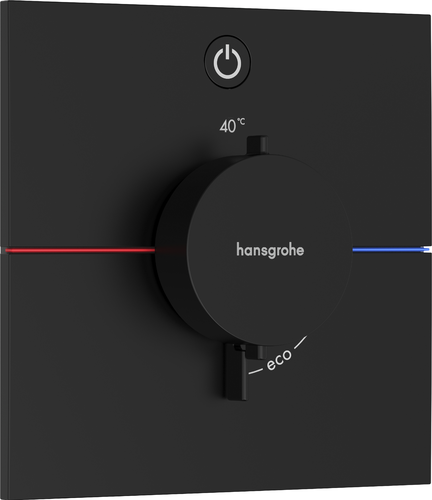

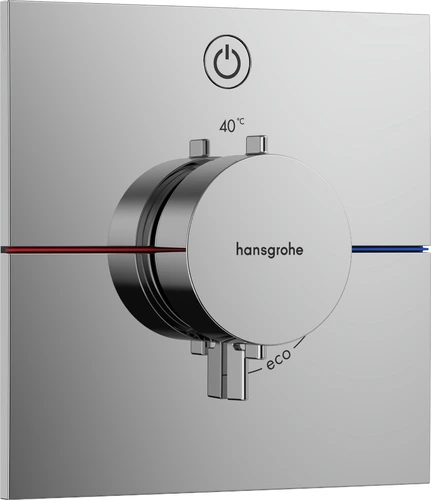

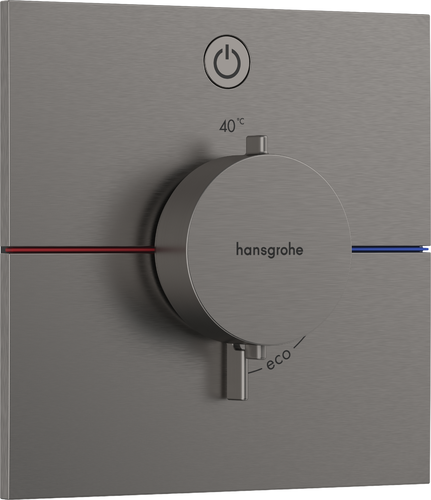

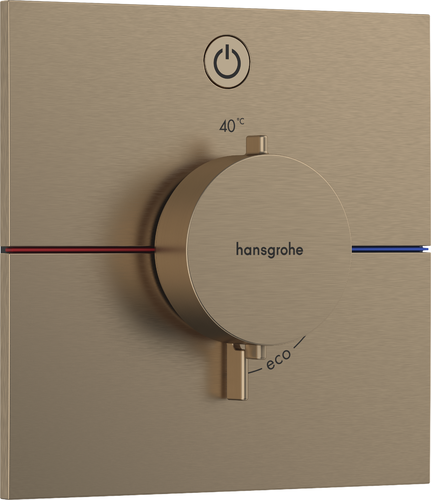

hansgrohe ShowerSelect Comfort E thermostat, concealed, 1 consumer, square rosette, with button

• hansgrohe ShowerSelect Comfort E
• 1 x concealed thermostat

Product details:

• for one consumer
• large Select button - convenient on/off switching of a consumer
• Volume control with stop function
• Thermostatic cartridge for regulating the temperature
• Start/stop valve for operating the consumer
• Flat rosette - more space in the shower
• Square rosette can be subsequently adjusted by +/- 3
• Pre-assembled function block - easy installation
• Handles always at the same height
• independent of the installation depth of the basic body
• Adjustable temperature limiter
• with safety lock at 40°C
• Thermostat offers the option of thermal disinfection
• Material (handles/button): Metal
• Thermostat is supplied with on/off button

Technical data:

• Connection type: iBox universal 2 base unit (item no.: 01500180)
• Base unit not included, please order separately.
• Max. flow rate at 3 bar: 20.3 l/min.
• min. Operating pressure: 1 bar
• max. operating pressure: 10 bar
• Noise group: I
• flow rate class: B

Scope of delivery:

• Thermostat, function block
• Mounting material and installation instructions
