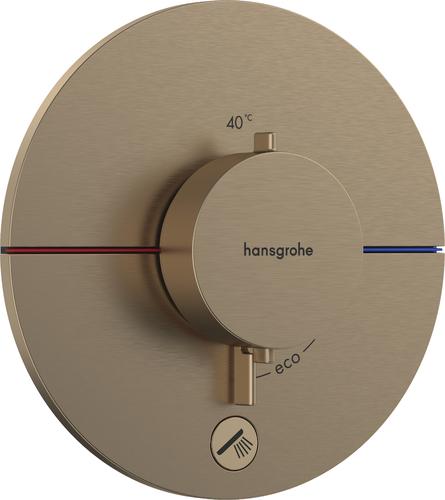

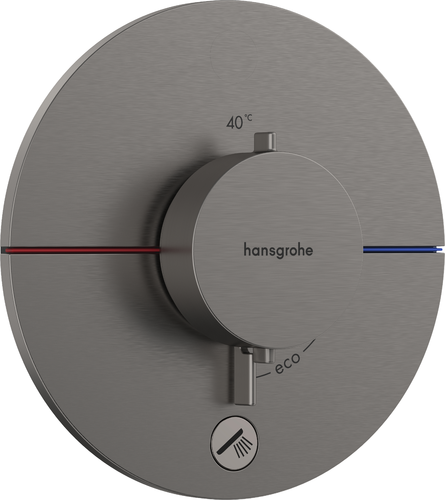

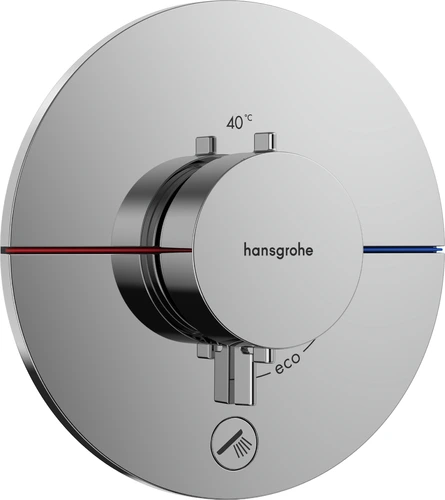

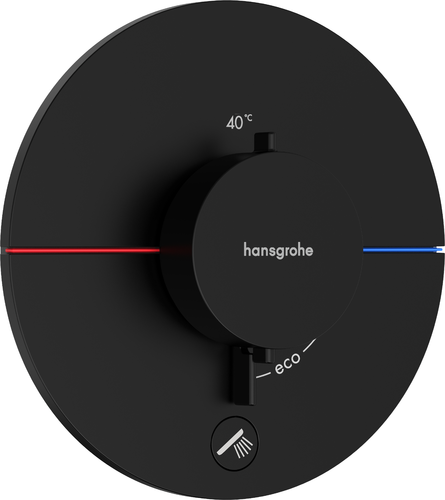

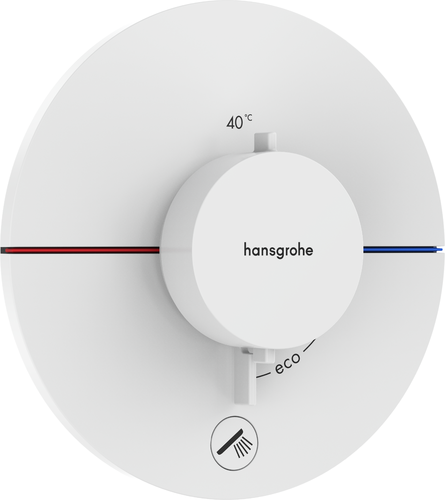

hansgrohe ShowerSelect Comfort S thermostat, concealed, 1 consumer, one additional outlet, round rosette

• hansgrohe ShowerSelect Comfort S
• 1 x concealed thermostat

Product details:

• for one consumer and one additional outlet
• large Select button - convenient on/off switching of a consumer
• Volume control with stop function
• Thermostatic cartridge, start/stop valve for operating the consumer
• Flat rosette - more space in the shower
• round rosette can be subsequently adjusted by +/- 3
• Pre-assembled function block - easy installation
• Handle always at the same height regardless of
• the installation depth of the base body
• Adjustable temperature limiter
• Safety lock at 40 °C
• Thermostat offers the option of thermal disinfection
• Material (handles / button): Metal
• Thermostat is supplied with Rain small and large buttons
• as well as hand shower, splash and tub

Technical data:

• Connection type: iBox universal 2 base unit (item no.: 01500180)
• Base unit not included, please order separately.
• Max. flow rate at 3 bar: 32.8 l/min.
• flow rate upper outlet: 23 l/min.
• flow rate lower outlet: 23 l/min.
• min. Operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Noise group: I
• flow rate class: B

Scope of delivery:

• Thermostat, function block
• Mounting material and installation instructions
