Geberit DuoFresh module with manual release and insert for Geberit DuoFresh Stick, for Sigma concealed cistern 12cm

Purpose

• For Geberit Sigma concealed cisterns 12 cm (from year of construction 2008)
• For direct odour extraction from WC ceramics
• For inserting Geberit DuoFresh Stick without chlorine or oxidizing components
• For Geberit actuator plates Sigma01
• For Geberit actuator plates Sigma10
• For Geberit actuator plates Sigma20
• For Geberit actuator plates Sigma21
• For Geberit actuator plates Sigma30
• For Geberit actuator plates Sigma50

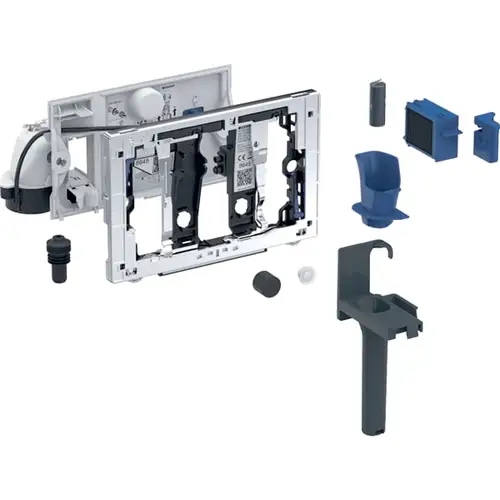

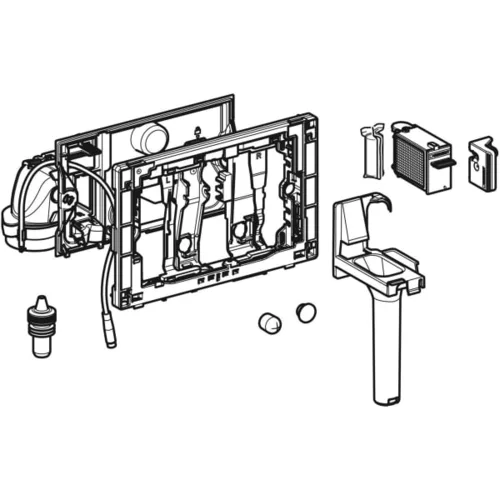

Scope of delivery

• Mounting frame with swivel mechanism
• Protective plate
• Suction unit with radial fan
• Cable connection with plug
• Ceramic honeycomb filter collection cup for Geberit DuoFresh Stick
• Moisture protection for empty pipe
• Drawer with filter and holder for Geberit DuoFresh Stick
• 8 Geberit DuoFresh Sticks

Technical data

• Protection class: III
• Protection class: IPX4
• Operating voltage:12 V DC
• Power consumption:7 W
• Standby power consumption:? 0.5 W

Characteristics

• Operation from the front
• Odour extraction circulating air with filtration integrated in UP cistern
• Suction unit can be mounted without tools
• Compatible with Geberit Home App
• Odour neutralization with ceramic honeycomb filter
• Ceramic honeycomb filter for odour neutralization can be replaced without tools
• Geberit DuoFresh Stick can be inserted without tools
