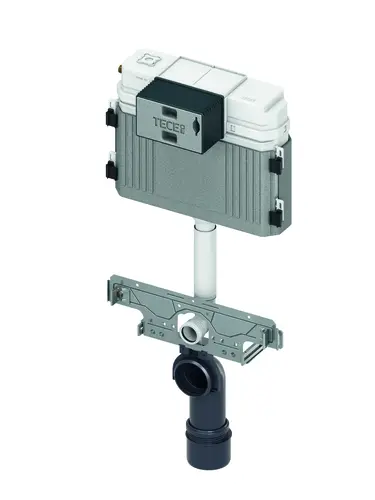

• TECEprofil
• 1 x WC connection unit

Product details

• incl. "easy fit" actuator plate installation
• For installation in a TECEprofil supporting structure
• Uni cistern for actuation from the front
• Safety tank made of impact-resistant plastic, (tested according to EN 14055)
• Cistern completely pre-assembled and sealed
• cistern connection with external thread R 1/2" on the side
• compatible with quick adapters, condensation water insulated
• 10 liter tank volume
• 6 liters preset standard flush volume
• 4.5/7.5/9 liter flush volume adjustable at any time
• 3 liters partial flush with dual flush technology
• Residual volume can be used for immediate cleaning flush
• for TECE actuating plates and WC fitting
• Can be used as a single or dual flush cistern
• Installation tunnel for service opening - can be shortened without tools
• Low-noise hydraulic filling valve (fitting group 1 according to DIN 4109)

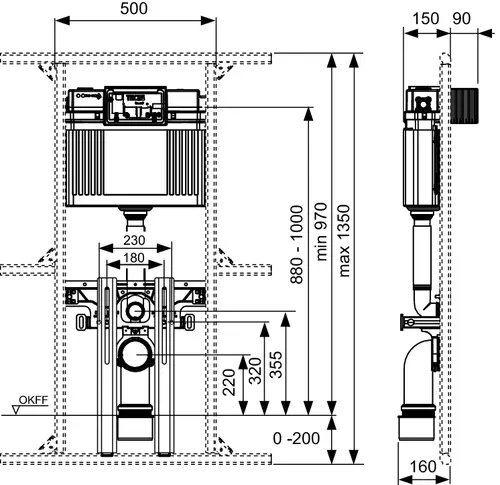

connection unit:

• mounting crossbar for WC fastening 180 or 230 mm
• two retaining bolts and nuts M12
• two adjustable foot supports
• for a floor construction of 0-200 mm
• WC drainage bend DN 90 with transition adapter DN 90/100 made of PP
• transition adapter also suitable for horizontal installation
• WC connection set DN 90
• including building protection plug
