• TECEprofil

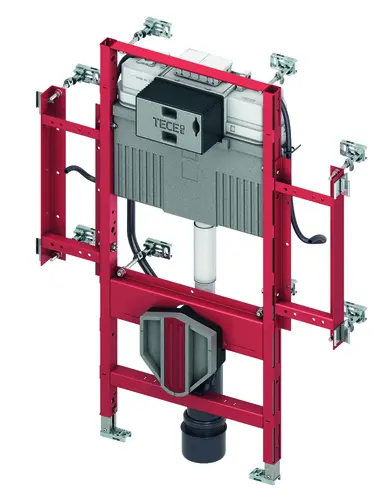

• 1 x WC geronto module

Product details

• incl. "easy fit" actuator plate mounting and empty pipe
• for connection of electronic shower toilets
• Module with lateral steel frames and empty conduits for cable routing,
• incl. mounting material
• Support folding handle height = 760 mm
• For mounting
• to TECEprofil profile pipes
• for installation in UA profile walls
• in front of a solid wall
• For barrier-free construction with raised ceramic fastening

Uni cistern for operation from the front:

• Safety tank made of impact-resistant plastic (tested according to EN 14055)
• Cistern completely pre-assembled and sealed
• cistern connection with external thread R 1/2" on the side
• compatible with quick adapters, condensation water insulated
• 10 liter tank volume
• 6 liters preset standard flush volume
• 4.5/7.5/9 liter flush volume adjustable at any time
• 3 liters partial flush with dual flush technology
• Residual volume can be used for immediate cleaning flush
• for TECE actuating plates and WC electronics
• Can be used as a single or dual flush cistern
• Installation tunnel for service opening can be shortened without tools
• Low-noise hydraulic filling valve (fitting group 1 according to DIN 4109)

module frame:

• self-supporting and powder-coated
• two adjustable foot supports for a floor build-up of 0-200 mm
• two retaining bolts, nuts M 12
• eight depth-adjustable module fasteners
• four multi clamps for fastening in a TECEprofil wall
• lateral steel frames to hold the steel plate set
• WC drain bend DN 90 with transition adapter DN 90/100 made of PP
• Transition adapter suitable for horizontal installation
• Toilet connection set DN 90, toilet connection box
• incl. shell protection and empty pipe
• for universal shower-toilet connection (check position)
• with junction box and cover for transformer

Note:

Concealed cable routing is not possible with all support flap handles due to manufacturer.
