• TECEprofil

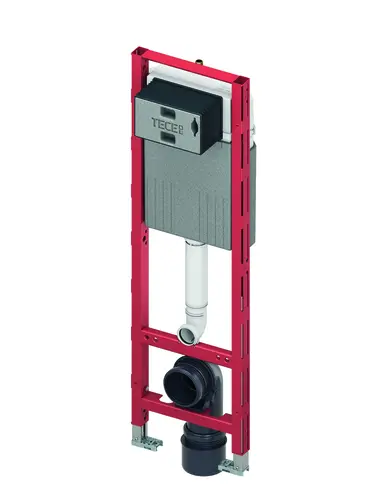

• 1x WC module with Compact 320 cistern

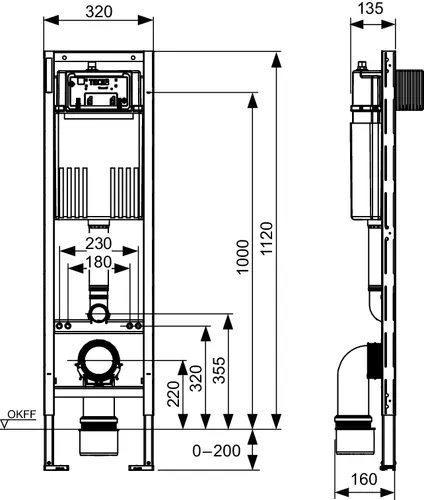

• height 1120 mm
• Including "easy fit" actuator plate mounting
• For mounting on TECEprofil profile pipes or for installation in metal or wooden post-and-beam walls as well as
• as pre-wall or corner module, also suitable for single block installation

Compact 320 cistern for actuation from the front:

• Safety tank made of impact-resistant plastic
• Cistern completely pre-assembled and sealed
• Cistern connection with external thread on top, compatible with quick adapters
• 3-way angle tap, shut-off valve with flushing function when filling valve is mounted
• 7 liter tank volume; 6 liter preset standard flush volume
• condensation water insulated
• for TECE actuating plates and WC fitting
• Can be used as single-flush or dual-flush cistern
• installation tunnel for service opening, can be shortened without tools
• Low-noise hydraulic filling valve, fitting group 1

module frame:

• self-supporting, powder-coated
• two retaining bolts and nuts M 12
• WC drain bend DN 90 with transition adapter
• transition adapter also suitable for horizontal installation
• WC connection set DN 90, including construction protection plug

To be ordered separately:

• WC actuating plate
• Fastening for pre-wall, corner or wooden post installation
• TECEone upgrade set for toilet modules 320 mm (optional)
