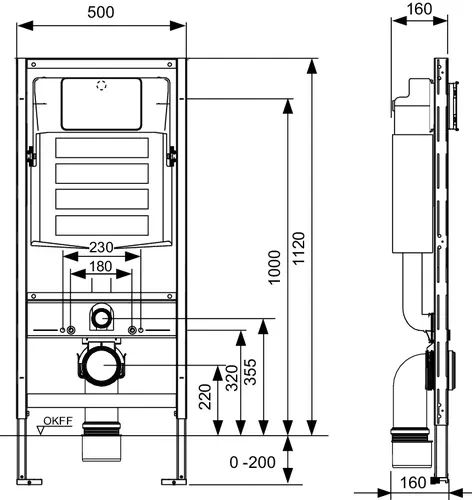

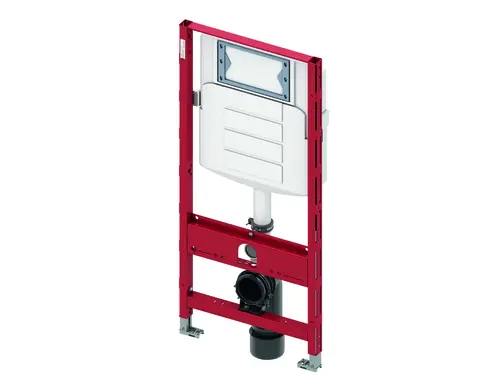

TECEprofil WC module with Geberit Sigma cistern, height 1120mm

• TECEprofil
• 1x WC module with Geberit Sigma cistern
• construction height 1120 mm
• for fastening to TECEprofil profile pipes or for installation in metal or wooden stud walls
• for fastening pre-wall or corner module, also suitable for single block installation

Geberit Sigma cistern for operation from the front:

• Cistern made of plastic
• Cistern not pre-assembled
• Cistern connection with 1/2" male thread
• 7.5 liter tank volume; 6 liter preset standard flush volume
• condensation water insulated

Module consisting of:

• self-supporting mounting frame, powder-coated
• two retaining bolts with nuts M 12
• WC drain bend DN 90 with transition adapter DN 90/100 made of PP
• transition adapter also suitable for horizontal installation
• WC connection set DN 90, including construction protection plug

To be ordered separately:

• Fastening for pre-wall, corner or wooden post installation
• TECEone upgrade set for dry construction
• For Geberit actuator plates Sigma 01/10/20/21/30/50/60/70/80
