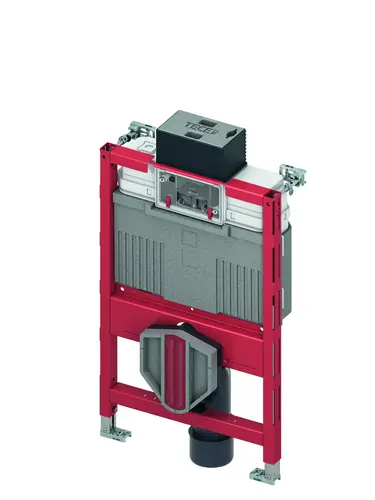

• TECEprofil
• 1x WC module with uni cistern

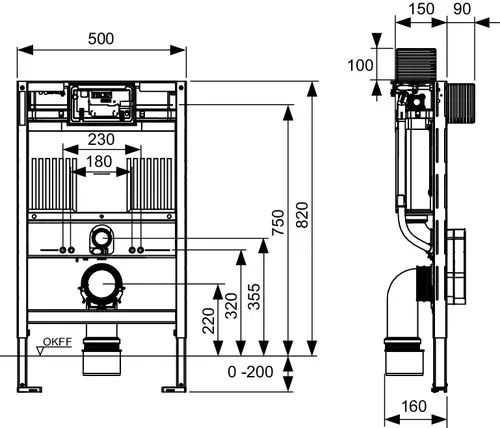

• construction height 820 mm
• Including "easy fit" actuator plate mounting and empty pipe for connecting electronic shower toilets
• For mounting on TECEprofil profile pipes or as pre-wall or corner module

Uni cistern for actuation from the front or top:

• Safety tank made of impact-resistant plastic
• Cistern completely pre-assembled and sealed
• Cistern connection with external thread R 1/2" laterally compatible with quick adapters
• 10 liter tank volume, 6 liter preset standard flush volume
• condensation water insulated
• for TECE actuator plates and toilet fittings
• Can be used as a single or dual flush cistern
• Installation tunnel for service opening, can be shortened without tools

Module frame:

• self-supporting, powder-coated
• two retaining bolts and nuts M 12
• two depth-adjustable module fasteners
• WC drain bend with transition adapter
• transition adapter also suitable for horizontal installation
• WC connection set
• WC connection box including rough-in protection and empty pipe for universal shower-toilet connection

To be ordered separately:

• WC actuating plate
• Insertion shaft for cleaning rods (optional, only when operated from the front)
• TECEone upgrade set dry construction (optional)
