• TECEdrain profiles
• 1 x vertical drain

Product details

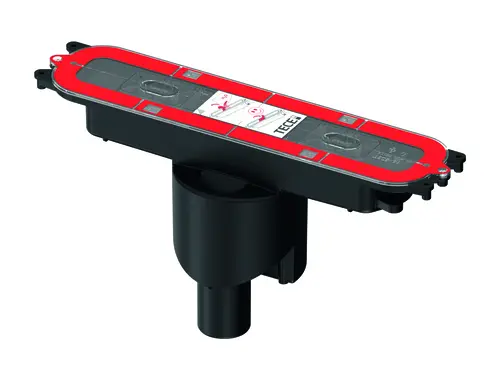

• Drain for TECEdrainprofile shower profiles
• for installation in screed
• Lateral connection to DN50 waste water pipe
• factory-fixed and clickable Seal System sealing sleeve
• DIN 18534 compliant connection to the bonded waterproofing

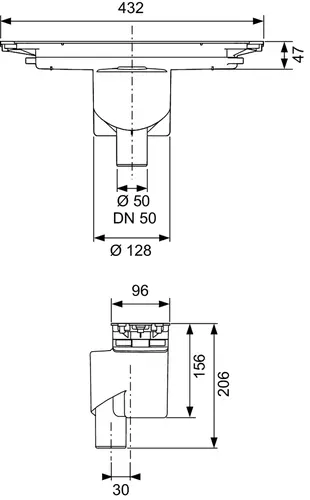

• min. Installation height 47 mm (lower edge of drain to upper edge of screed)
• Drainage capacity ≥ 1.31/≥ 1.37 l/s (according to EN 1253 with 10/20 mm backwater above profile cover)
• Water trap height 50 mm
• Odor trap removable
• Integrated screed anchoring
• Factory-fixed, clickable and flexible sealing sleeve with Seal System
• Matching prefabricated sound insulation strip
• Building protection cover
• Sliding/movable seal for connection with TECEdrainprofile shower profile and
• to compensate for construction tolerances

Ordering information - please order separately:

Wall and floor mounting brackets or mounting feet and sound insulation mat Drainbase (optional)
