- DN 50 perpendicular to the highly fire-resistant sealing of
- Ceiling penetrations in solid ceilings up to 120 min. Classification
- acc. to DIN EN 13501 for fire protection class El 120.

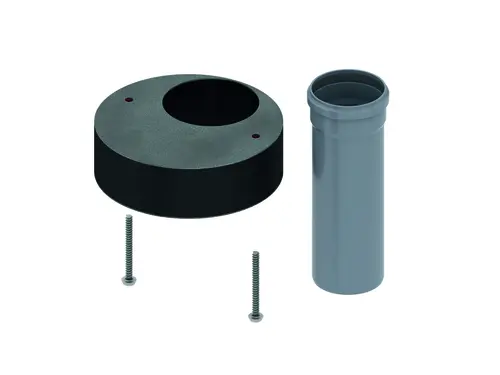

- Set consisting of: Fire protection collar, 2 cross-slotted head screws, identification plate
- Required core hole drilling: Diameter = 130 mm ( Diameter min = 129 mm, Diameter max = 133 mm)
- Application: Solid ceilings from 150 mm to 325 mm ceiling thickness
- Connecting pipe: PP-HT pipe according to DIN EN 1451 (minimum length 100 mm)
- No grouting or filling of the interspace required
- Compatible with all TECEdrainline channels and covers
Manufacturer:
TECE GmbH
Hollefeldstr. 57
DE-48282 Emsdetten
E-mail:
info@tece.de
**Badquadrat Shop Price without additional discount
Artikel zum Warenkorb hinzugefuegt
TECEdrainline Fire protection set FireStop El 120 DN 50
In stock (2 Days)
