• TECEdrainpoint S 112
• 1 x drain set
• super flat

Product details:

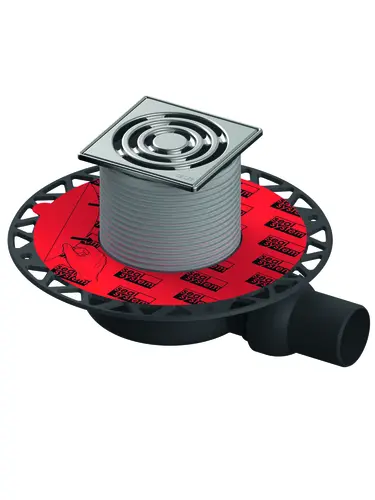

• Floor drain set horizontal, DN 50
• with Seal System universal flange
• Stainless steel grate frame and stainless steel grate
• with 2-stage membrane odor trap
• without inlet

consisting of:

• Drain body DN 50 horizontal, made of plastic (PP)
• with universal flange for connecting composite seals
• in accordance with DIN 18534 or clamping flange connections
• with ball joint and 2-stage membrane odor trap, removable
• Reduced sealing water height: 27 mm
• Top piece made of plastic (ABS) and O-ring seal
• TECEdrainpoint S design grate and grate frame made of drawn stainless steel
• Polished surface

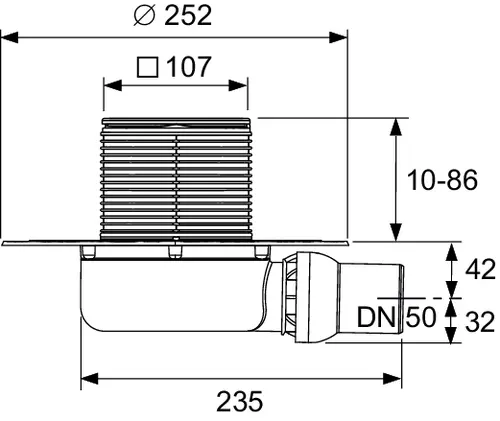

• Dimensions: 100 x 100 mm
• Load class K3 (loadable up to 300 kg)

Drainage capacity in accordance with EN 1253 at 10/20 mm back-up height above grate:

• at minimum height of the top section: 0.51/0.61 l/s
• at maximum height of the top section: 0.56/1.23 l/s

Note:

Delivery includes construction period protection cover, construction period protection foil and installation instructions.
