• TECEdrainpoint S 111
• 1 x drain set
• super flat

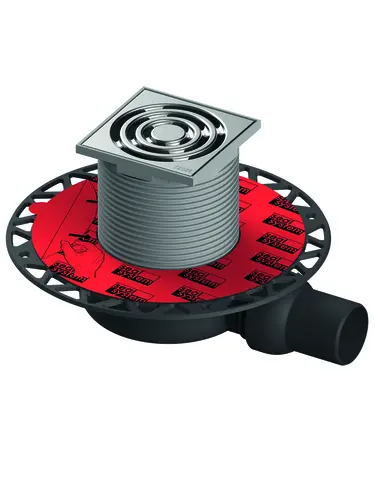

Product details:

• Floor drain set horizontal, DN 50
• with Seal System universal flange
• without inlet

consisting of:

• Drain body DN 50 horizontal, made of plastic (PP)
• with universal flange for connecting composite seals
• in accordance with DIN 18534 or clamping flange connections
• With removable ball joint and odor trap
• Reduced sealing water height = 27 mm
• Top piece with grate frame made of plastic (ABS) and O-ring seal
• TECEdrainpoint S design grate made of drawn stainless steel
• Polished surface

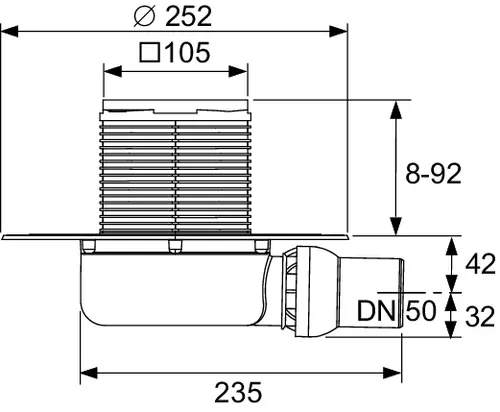

• Dimensions: 100 x 100 mm
• Load class K3 (loadable up to 300 kg)

Drainage capacity in accordance with EN 1253 at 10/20 mm back-up height above grate:

• at minimum height of the top section: 0.52/0.61 l/s
• at maximum height of the top section: 0.69/1.12 l/s

Note:

Delivery includes construction period protection cover, construction period protection foil and installation instructions.
