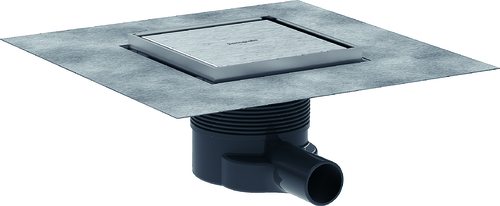

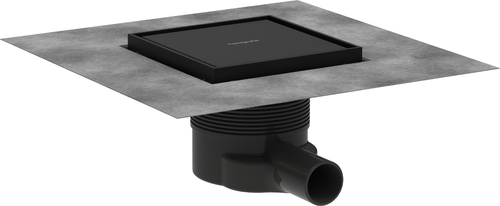

• Hansgrohe RainDrain Brilliance
• 1 x complete set point drain 150/150

Product details

• Set consisting of:
• Point drain, installation set, base body,
• factory pre-assembled sealing fleece, cover lifter,
• siphon and protective cap
• Material (cover): Stainless steel
• Pre-assembled sealing membrane
• Can be tiled on the back
• Water trap height: up to max. 50 mm
• Nominal diameter of connection: DN40
• Outlet direction: horizontal
• Easy to clean surface
• Simple adjustment to the tile thickness
• thanks to the height-adjustable frame (7 - 18 mm)
• up to 35 l/min. drainage capacity
• Area of application: new build and renovation
• Removable odor trap
• Rotatable and adjustable trap body
• Easy to clean trap
• Cover lifter enables easy removal of the prefabricated set
• Removable hair strainer
• Odour trap type: liquid
• Minimum installation height 76 mm
• Material (trap): ABS
• Installation type: free in the room
• Simplified installation due to the shortenable trap
• Depth of the tile recess: 12 mm
• Suitable for primary and secondary drainage
