• TECEdrainline-Evo
• 1 x shower channel

Product details

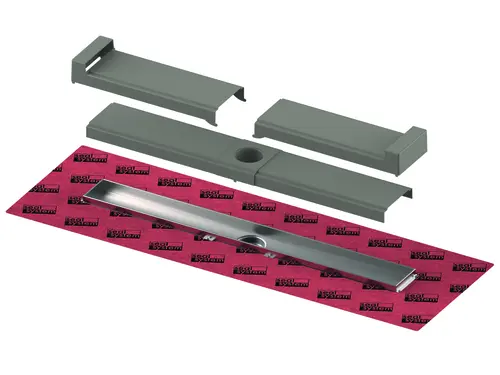

• Straight stainless steel channel body
• including factory-fitted Seal System sealing sleeve
• with construction time protection for installation in screed
• DIN 18534-compliant connection of the TECEdrainline shower channel
• to the composite seal

Consisting of:

• Continuously closed channel body made of polished stainless steel (material 1.4301 (304))
• Capillary protection edge to prevent capillary shower water entering under the tiles
• backwater-proof secondary drainage via the glass-fiber-reinforced plastic hard shell
• factory-fitted Seal System sealing collar
• for on-site incorporation into the liquid or sheet composite waterproofing system
• Construction time protection with tamper-evident seal for stainless steel channel and Seal System sealing collar
• Mounting for the installation of optional mounting feet and for anchoring in the screed
• Leveling points (left and right) for clipping and
• to form a wider screed take-off edge for simplified leveling
• central gutter socket for connection of the drainage system
• internal slope to improve water drainage and self-cleaning effect
• immersion pipe seal
• optional secondary drainage

Ordering information - please order separately

Design grate or tile trough and drain
