• TECEdrainpoint S 50
• 1 x drain set
• super flat

Product details:

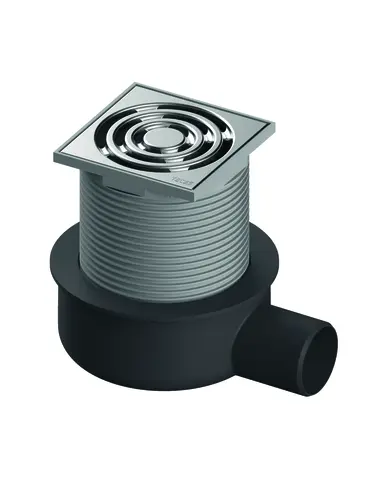

• Floor drain set horizontal, DN 50

consists of:

• Drain body DN 50 horizontal, super flat,
• made of plastic (PP)
• with retaining rim and removable odor tra p
• reduced barrier water height = 27 mm
• Top piece with grate frame made of plastic (ABS) and O-ring seal
• TECEdrainpoint S design grate made of drawn stainless steel
• with polished surface

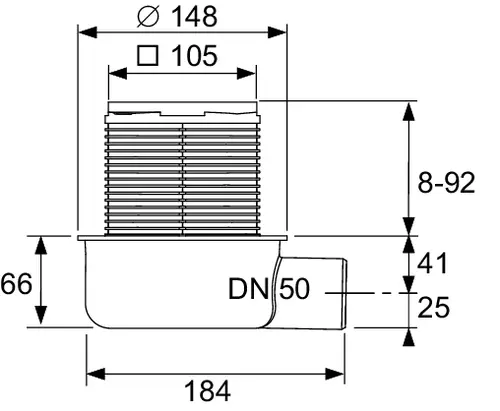

• Dimensions: 100 x 100 mm
• Load class K3 (loadable up to 300 kg)

Drainage capacity according to EN 1253 at 10/20 mm accumulation height above grate:

• at minimum height of the top piece: 0.52/0.61 l/s
• at maximum height of the top piece: 0.69/1.12 l/s

Note:

Delivery incl. construction time protection cover, construction time protection foil and installation instructions.
