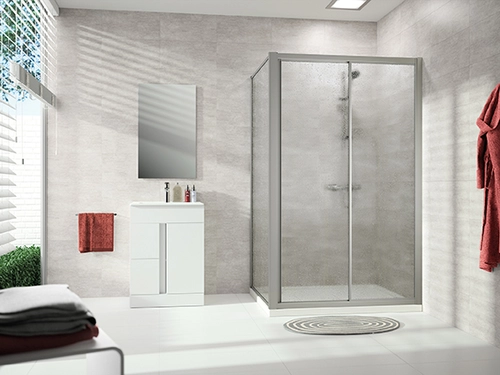

Hüppe Alpha 2 sliding door, 1-piece, with fixed segment, 1200x2000mm, fully framed, A22309

1-2 Weeks
941,00 € *
529,88 €
We check your order
A22309
3500 Points
Product Option selected
description
  • Hüppe Alpha 2
  • 1 x sliding door, 4-corner, fully framed

Product features:

  • 1-piece
  • for installation in a recess
  • for combination with Alpha 2 side panel
  • Framed door with one sliding door segment
  • opening to one side
  • with one fixed segment
  • Profiles and handle strips made of high-quality anodized aluminium
  • Adjustment option in the wall profile 25mm
  • In combination with side panel 20mm on handle side
  • Sliding door segments can be unhooked inwards for easy cleaning
  • with floor profile (height 41mm)
  • Continuous magnetic strips in the handle strip for optimum door closure
  • Suitable for installation on shower tray and tiled floor
  • Handle: Handle strip
  • installation at floor level possible
  • Left and right-hand mounting
  • Installation status: partially assembled

Glazing options optional:

  • Glazing with 2 mm Pacific S art glass or
  • 4mm toughened safety glass to DIN EN 12150
  • optionally with the easy-care Hüppe Anti-Plaque surface finish (only for toughened safety glass)

Dimensions:

  • Height: 2000 mm
  • Adjustment range in recess: 50 mm
  • Adjustment range in side panel: 45 mm
  • Tray installation dimension in recess: 1170-1220 mm
  • Tray installation dimension in side wall: 1185-1230 mm
  • Width of fixed panel: 575-600 mm
  • Access width: 493 mm
  • for installation on tiled floor:
  • Installation dimension center of glass: 1170-1220 mm
  • Installation dimension (center of glass) side wall: 1165-1210 mm

Scope of delivery:

  • 1-piece sliding door, fixing material and installation instructions
  • incl. HÜPPE Keder system - installation without visible screws in the area of the wall strip

Optional mounting accessories:

  • For widening by 15mm for a wall rail width of 30.4mm
  • the widening profile (item no.: 141001 for 1900mm height and item no.: A21005 for 2000mm height) can be used.
  • Please order separately!
  • Installation in U-shape possible, U-cabin bracket set required.
  • U-cabin bracket set not included, please order separately!

Please note:

  • The specified dimensions of the shower enclosure only refer to installation on shower trays.
  • For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!
  • A measuring and installation service is recommended for this item!

Information on product safety

Manufacturer:
HÜPPE GmbH
Industriestraße 3
DE-26160 Bad Zwischenahn

E-mail:
hueppe@hueppe.com
