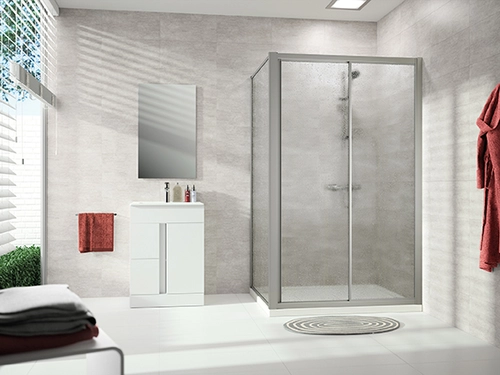

• Hüppe Alpha 2
• 1 x sliding door, 4-corner, fully framed

Product features:

• 1-piece
• for installation in a recess
• for combination with Alpha 2 side panel
• Framed door with one sliding door segment
• opening to one side
• with one fixed segment
• Profiles and handle strips made of high-quality anodized aluminium
• Adjustment option in the wall profile 25mm
• In combination with side panel 20mm on handle side
• Sliding door segments can be unhooked inwards for easy cleaning
• with floor profile (height 41mm)
• Continuous magnetic strips in the handle strip for optimum door closure
• Suitable for installation on shower tray and tiled floor
• Handle: Handle strip
• installation at floor level possible
• Left and right-hand mounting
• Installation status: partially assembled

Glazing options optional:

• Glazing with 2 mm Pacific S art glass or
• 4mm toughened safety glass to DIN EN 12150
• optionally with the easy-care Hüppe Anti-Plaque surface finish (only for toughened safety glass)

Dimensions:

• Height: 2000 mm
• Adjustment range in recess: 50 mm
• Adjustment range in side panel: 45 mm
• Tray installation dimension in recess: 1470-1520 mm
• Bath installation dimension in side wall: 1485-1530 mm
• Width of fixed panel: 725-750 mm
• Access width: 643 mm
• for installation on tiled floor:
• Installation dimension center of glass: 1470-1520 mm
• Installation dimension (center of glass) side wall: 1465-1510 mm

Scope of delivery:

• 1-piece sliding door, fixing material and installation instructions
• incl. HÜPPE Keder system - installation without visible screws in the area of the wall strip

Optional mounting accessories:

• For widening by 15mm for a wall rail width of 30.4mm
• the widening profile (item no.: 141001 for 1900mm height and item no.: A21005 for 2000mm height) can be used.
• Please order separately!
• Installation in U-shape possible, U-cabin bracket set required.
• U-cabin bracket set not included, please order separately!

Please note:

• The specified dimensions of the shower enclosure only refer to installation on shower trays.
• For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!
• A measuring and installation service is recommended for this item!
