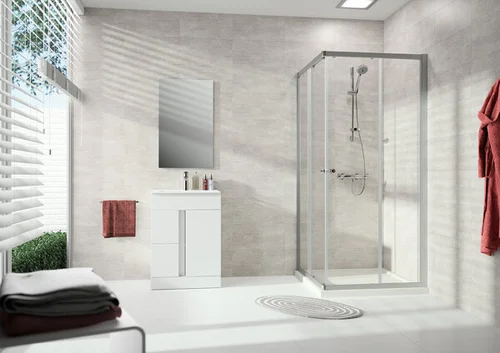

• Hüppe Alpha 2
• 1 x sliding door entry, 4-corner, partially framed

Product features:

• 2-part
• Partially framed corner entrance with two sliding door segments
• each opening to one side, with two fixed segments
• Profiles made of high-quality anodized aluminium
• Knob handle made of chrome-plated plastic
• High-quality corner connectors and knob handle in high-gloss silver
• Adjustment option in the wall profile 25mm
• sliding door segments can be unhooked inwards - for easy cleaning
• High-quality ball-bearing double castors with chrome applications
• with floor profile (height 41mm)
• Continuous magnetic strips and sealing profiles
• Suitable for installation on shower trays and tiled floors
• floor-level installation possible
• Left and right-hand mounting
• Installation status: partially assembled

Glazing:

• Door: Glazing with 5mm toughened safety glass
• Fixed segment: Glazing with 4mm toughened safety glass
• Toughened safety glass according to DIN EN 12150
• optionally with the easy-care Hüppe Anti-Plaque surface finish (only for toughened safety glass)

Dimensions:

• Height: 1900 mm
• Adjustment range standard: 25 mm
• Bath installation dimensions as corner entry: 785-810 mm
• Width of fixed panel: 329-354 mm
• Access width: 432 mm
• for installation on tiled floor:
• Installation dimension center glass: 755-780 mm

Scope of delivery:

• 2-piece sliding door entry, fixing material and installation instructions
• incl. HÜPPE Keder system - installation without visible screws in the area of the wall strip

Optional installation accessories:

• For widening by 15mm for a wall rail width of 30.4mm
• the widening profile (item no.: 141001 for 1900mm height and item no.: A21005 for 2000mm height) can be used.
• Please order separately!
• Installation in U-shape possible, U-cabin bracket set required.
• U-cabin bracket set not included, please order separately!

Please note:

• The specified dimensions of the shower enclosure only refer to installation on shower trays.
• For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!
• A measuring and installation service is recommended for this item!
