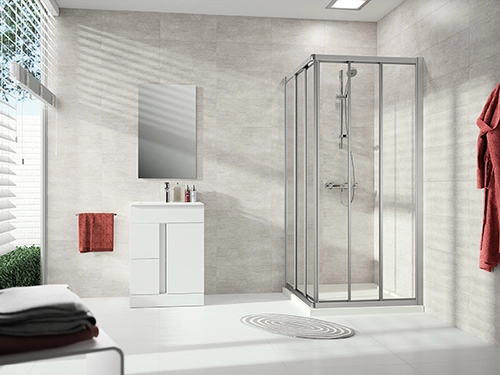

• Hüppe Alpha 2
• 1 x sliding door entry, 4-corner, fully framed

Product features:

• 3-part
• Framed corner entrance with four sliding door segments
• each opening to one side
• with two fixed segments
• Profiles and handle strips made of anodized aluminium
• High-quality corner connector in high-gloss silver
• Adjustment option in the wall profile 25 mm
• sliding door segments can be unhooked inwards for easy cleaning
• with floor profile (height 41mm)
• Continuous magnetic strips in the handle strip for optimum door closure
• and water-repellent horizontal sealing strip
• Suitable for installation on shower trays and tiled floors
• Handle: Handle strip
• floor-level installation possible
• Left and right fixing
• Installation status: partially assembled

Glazing options optional:

• Glazing with 2 mm Pacific S art glass or
• 4mm toughened safety glass to DIN EN 12150
• optionally with the easy-care Hüppe Anti-Plaque surface finish (only for toughened safety glass)

Dimensions:

• Height: 1900mm
• Adjustment range standard: 25 mm
• Bath installation dimensions as corner entry: 685-710 mm
• Access width: 416 mm
• for installation on tiled floor:
• Installation dimension center glass: 655-680mm

Scope of delivery:

• Sliding door entry (3-part), fixing material and installation instructions
• incl. HÜPPE Keder system - installation without visible screws in the area of the wall strip

Optional installation accessories:

• For widening by 15mm for a wall strip width of 30.4mm
• the widening profile (item no.: 141001 for 1900mm height and item no.: A21005 for 2000mm height) can be used.
• Please order separately!
• Installation in U-shape possible, U-cabin bracket set required.
• U-cabin bracket set not included, please order separately!

Please note:

• The specified dimensions of the shower enclosure only refer to installation on shower trays.
• For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!
• A measuring and installation service is recommended for this item!
