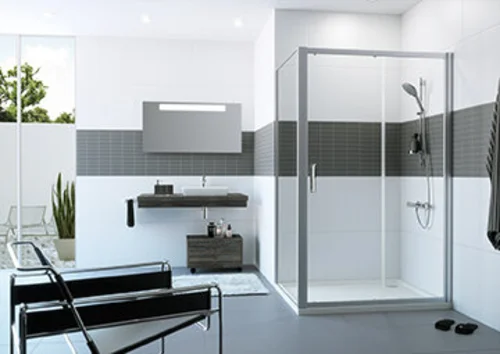

HÜPPE Classics 2
1x 1-piece 4-corner sliding door with fixed segment
Glass profile
- Glazing with 6 mm (door) and 4 mm (fixed segment) toughened safety glass ESG
- Profiles made of high-quality anodized aluminium
Dimensions
- Height 190cm
- Adjustment range in recess 5 cm
- Adjustment range with side panel 4.5 cm
- Bath installation dimension in recess: 117 - 122 cm
- Bath installation dimension with side panel: 118.5 - 123 cm
- Entry width standard: 50.1 cm
- Left/right mounting
- Installation on tiled floor and shower tray possible
Product features
- Sliding door with fixed segment in recess, can be combined with side panel
- Adjustment option in wall profile 25mm. In combination with side panel 20mm on handle side
- Installation without visible screws in the wall profile area
- Sliding door segments can be unhooked inwards for easy cleaning
- High-quality double castors with ball bearings and elegant chrome applications
- With floor profile (height 41 mm)
- Bow handle made of high-quality chrome-plated metal
- Continuous magnetic strips and sealing profiles
- Assembly condition: partially assembled
Scope of delivery:
- Included in delivery: Fastening material, assembly instructions
For installation in a niche and for combination with Classics 2 side panel for sliding door
Partially framed door with one sliding door segment, opening to one side, with one fixed segment
For a widening by 15mm for a wall rail width of 30.4mm, the widening profile (art.no.: 141001 for 1900mm height and art. no.: A21005 for 2000mm height) can be used.
Please order separately!
The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!
The measuring and installation service is recommended for this item!
Manufacturer:
HÜPPE GmbH
Industriestraße 3
DE-26160 Bad Zwischenahn
