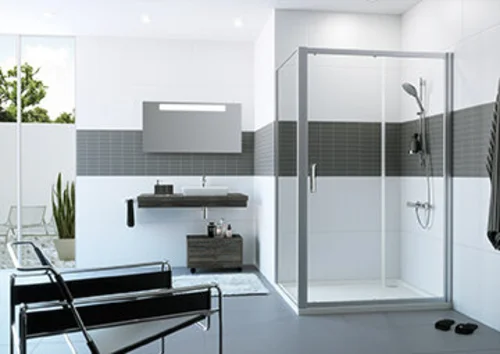

HÜPPE Classics 2

1x 1-piece 4-corner sliding door with fixed segment

Glass profile

• Glazing with 6 mm (door) and 4 mm (fixed segment) toughened safety glass ESG
• Profiles made of high-quality anodized aluminium

Dimensions

• Height 190cm
• Adjustment range in recess 5 cm
• Adjustment range with side panel 4.5 cm
• Bath installation dimension in recess: 142 - 147 cm
• Bath installation dimension with side panel: 143.5 - 148 cm
• Entry width standard: 60.1 cm
• Left/right mounting
• Installation on tiled floor and shower tray possible


Product features

• Sliding door with fixed segment in recess, can be combined with side panel
• Adjustment option in wall profile 25mm. In combination with side panel 20mm on handle side
• Installation without visible screws in the wall profile area
• Sliding door segments can be unhooked inwards for easy cleaning
• High-quality double castors with ball bearings and elegant chrome applications
• With floor profile (height 41 mm)
• Bow handle made of high-quality chrome-plated metal
• Continuous magnetic strips and sealing profiles
• Assembly condition: partially assembled

Scope of delivery:

• Included in delivery: Fastening material, assembly instructions

For installation in a niche and for combination with Classics 2 side panel for sliding door
Partially framed door with one sliding door segment, opening to one side, with one fixed segment
For a widening by 15mm for a wall rail width of 30.4mm, the widening profile (art.no.: 141001 for 1900mm height and art. no.: A21005 for 2000mm height) can be used.

Please order separately!

The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!

The measuring and installation service is recommended for this item!
