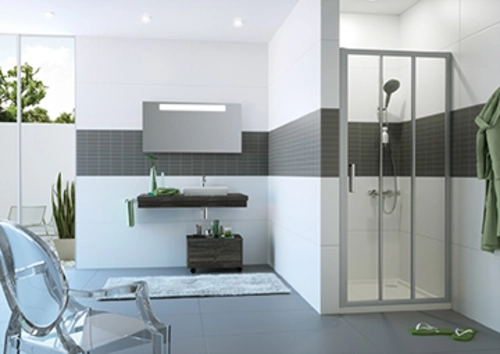

HÜPPE Classics 2

1x 4-corner sliding door 2-part with fixed segment

Glass profile

• Glazing with 4 mm toughened safety glass ESG
• Profiles made of high-quality anodized aluminium

Dimensions

• Height 190cm
• Adjustment range in recess 5 cm
• Adjustment range with side panel 4.5 cm
• Bath installation dimension in recess: 97 - 102 cm
• Bath installation dimension with side panel: 98.5 - 103 cm
• Entry width standard: 49 cm
• Left/right mounting
• Can be installed on tiled floor and shower tray

Product features

• For installation in a niche and for combination with Classics 2 side panel for sliding door
• Partially framed door with two sliding door segments, opening to one side, with one fixed segment
• Adjustment option in the wall profile 25mm. In combination with side panel 20mm on handle side
• Installation without visible screws in the area of the wall profile
• Sliding door segments can be unhooked inwards for easy cleaning
• High-quality double castors with ball bearings and elegant chrome applications
• With floor profile (height 41 mm)
• Bow handle made of high-quality chrome-plated metal
• Continuous magnetic strips and sealing profiles
• Assembly condition: partially assembled

Scope of delivery:

• Included in delivery: Fixing materials, installation instructions

The widening profile (item no.: 141001 for 1900mm height and item no.: A21005 for 2000mm height) can be used to widen the shower enclosure by 15mm for a wall rail width of 30.4mm.
Please order separately!

The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!

A measuring and installation service is recommended for this item!
