HÜPPE Classics 2

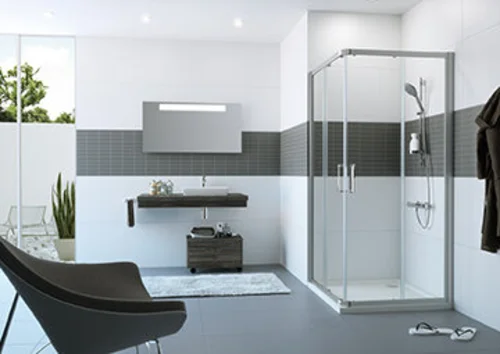

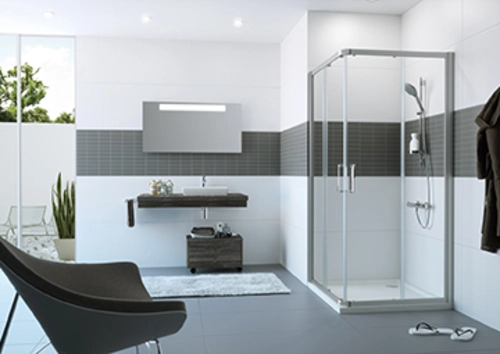

1x 4-corner sliding door entry 2-part (1/2)

Glass profile

• Glazing with 6 mm (door) and 4 mm (fixed segment) toughened safety glass
• Profiles made of high-quality anodized aluminium

Dimensions

• Height 190cm
• Adjustment range standard 2.5 cm
• Bath installation dimensions as corner entry: 83.5 - 86 cm
• Left/right mounting
• Installation on tiled floor and shower tray possible


Product features

• Partially framed corner access with two sliding door segments, each opening to one side, with two fixed segments
• Adjustment option in the 25 mm wall profile
• Installation without visible screws in the area of the wall profile
• Sliding door segments can be unhooked inwards for easy cleaning
• High-quality double castors with ball bearings and elegant chrome applications
• With floor profile (height 41 mm)
• Bow handle made of high-quality chrome-plated metal
• Continuous magnetic strips and sealing profiles
• Assembly condition: partially assembled

Scope of delivery:

• Included in delivery: Fixing materials, installation instructions

The widening profile (item no.: 141001 for 1900mm height and item no.: A21005 for 2000mm height) can be used for a widening by 15mm for a wall rail width of 30.4mm.

Please order separately!

The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!

The measuring and installation service is recommended for this item!

This is only half of a combinable shower enclosure. For a complete shower enclosure, please also order another corresponding item from the series!
