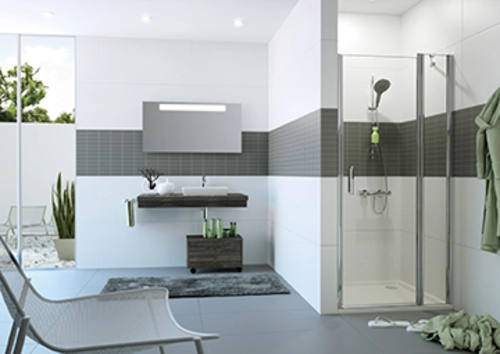

HÜPPE Classics 2

1x 4-corner pivot door with fixed segment in recess

Glass profile

• Glazing with 6 mm toughened safety glass ESG
• Profiles made of high-quality anodized aluminium

Dimensions

• Height 190cm
• Tub installation dimension in recess: 88.5 - 91.5 cm
• Width of fixed panel: 26.1 - 27.6 cm
• Adjustment range standard 3 cm
• Entry width in alcove: 57 cm
• Can be installed on tiled floor and shower tray

Product features

• Partially framed door with one glass panel with fixed segment, opening inwards and outwards
• Left/right fixing
• Adjustment option in the 15 mm wall profile
• Installation without visible screws in the wall profile area
• Continuous magnetic strips and sealing profiles, as well as water-repellent horizontal sealing strip
• Bow handle made of high-quality chrome-plated metal
• Installation condition: partially assembled

Scope of delivery:

• Included in delivery: Fastening material, assembly instructions

For glass 373/375 Privatima, please specify whether left or right mounting.

The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!

A measuring and installation service is recommended for this item!
