HÜPPE Classics 2

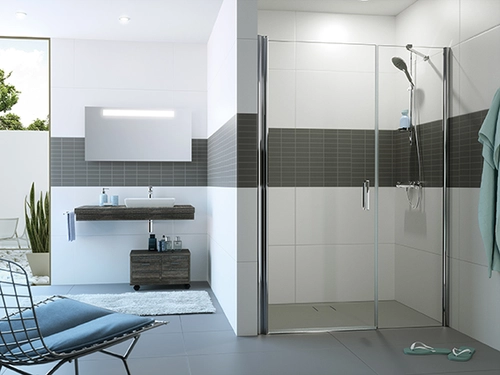

1x4-corner swing door with side panel in recess

Glass profile

• Glazing with 6mm toughened safety glass ESG
• Profiles made of high-quality anodized aluminium

Dimensions

• Height 190cm
• Adjustment range standard 3 cm
• Bath installation dimension in recess: 138.5 - 141.5 cm
• Standard access width: 78 cm
• Can be installed on tiled floor and shower tray

Product features

• Partially framed door with one glass panel with side panel, opening inwards and outwards
• Left/right attachment
• Adjustment option in the 15 mm wall profile.
• Installation without visible screws in the wall profile area
• Continuous magnetic strips and sealing profiles, as well as water-repellent horizontal sealing strip
• Bow handle made of high-quality chrome-plated metal
• Assembly condition: partially assembled

Scope of delivery:

• Included in delivery: Fastening material, installation instructions

The widening profile (item no.: 178002 for 1900mm height or item no.: 178006 for 2000mm height) can be used to widen a door by 15mm.
Please order separately!

The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!

A measuring and installation service is recommended for this item!
