HÜPPE SolvaPro pivot door partially framed, 4-corner, with fixed segment, right-fixing, width: 1200mm
- Item No. 7T0404
- Further information
Shipping index: 3500 Points
incl. 19% VAT in addition
Further information
Product information
Hüppe SolvaPro

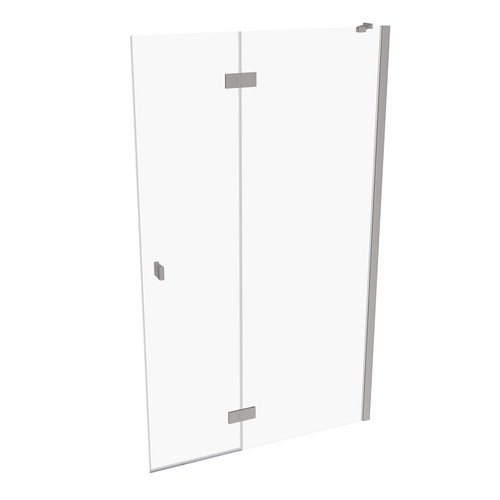

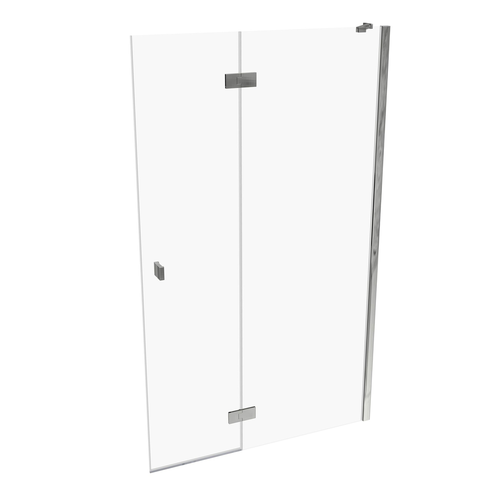

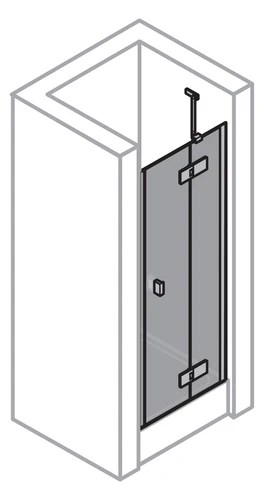

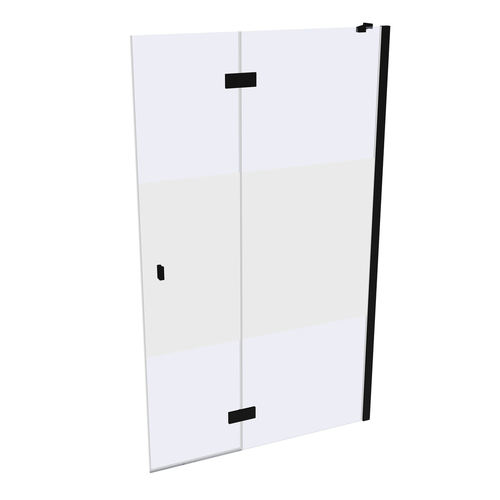

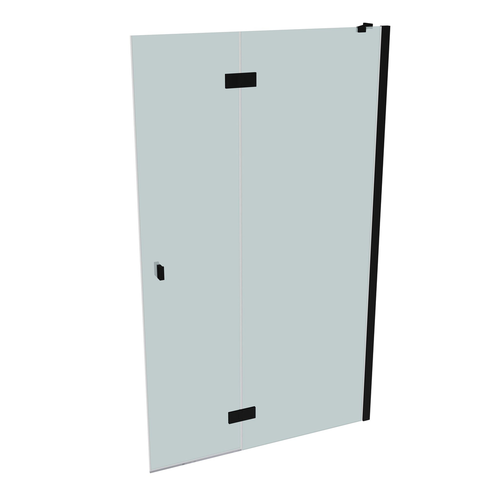

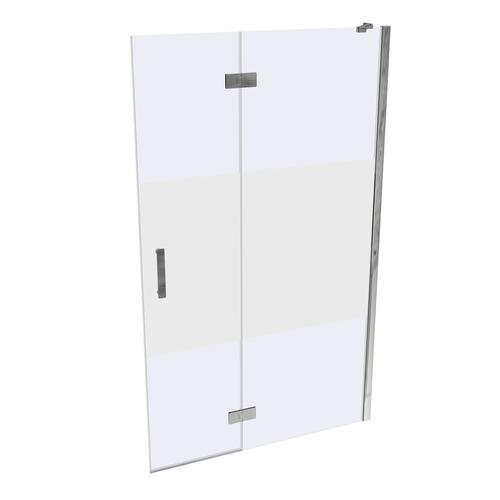

- 1x pivot door partially framed, 4-corner, with fixed segment
Product features:

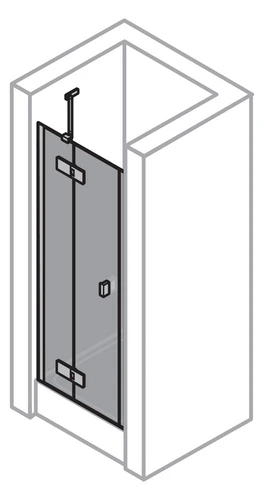

- For installation in a recess or combination with SolvaPro side panel
- Partially framed door with one glass panel, opening inwards and outwards, with one fixed segment
- Glazing with 8 mm toughened safety glass to DIN EN 12150, optionally with the easy-care HÜPPE Anti-Plaque surface finish

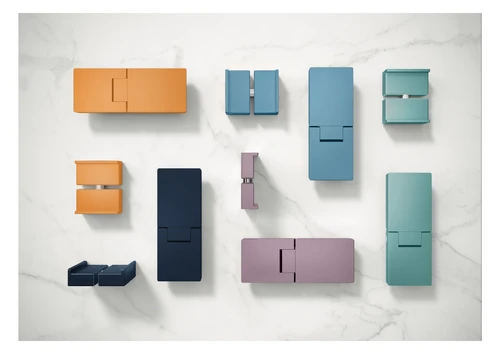

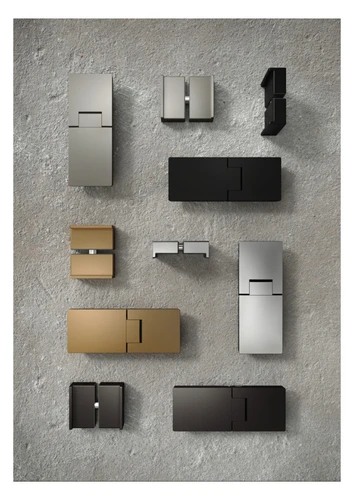

- Profiles made of high-quality anodized aluminium, handles and hinges made of high-quality metal
- Adjustment option in wall profile 15 mm

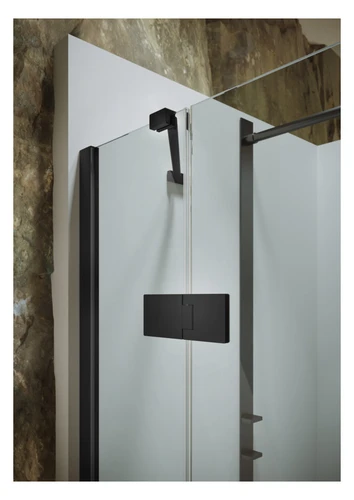

- Raise/lower mechanism of the hinge discreetly concealed behind a cap
- Fittings flush with the inside surface for easy cleaning
- With threshold protection strip (height 10 mm) for optimum tightness, or can be installed without thresholds
- Continuous magnetic strips and sealing profiles, as well as water-repellent horizontal sealing strip
- Can be installed on shower tray or tiled floor
- With stabilizer (inside)
- Sloping / cut-outs possible (on request/surcharge)
- Fittings with lift/lower mechanism and flush with the glass surface on the inside
- Handle: Comfort handle
- Right-hand fastening
Dimensions:
- Width of fixed panel: 46.1 - 47.6 cm
- Adjustment range in recess 3 cm
- Adjustment range with side panel 1.5 cm
- Bath installation dimension in recess: 118.5 - 121.5 cm
- Bath installation dimension with side panel: 118.5 - 120 cm
- Entry width in alcove: 67 cm
- Entry width side panel: 67 cm
Colors/finish:

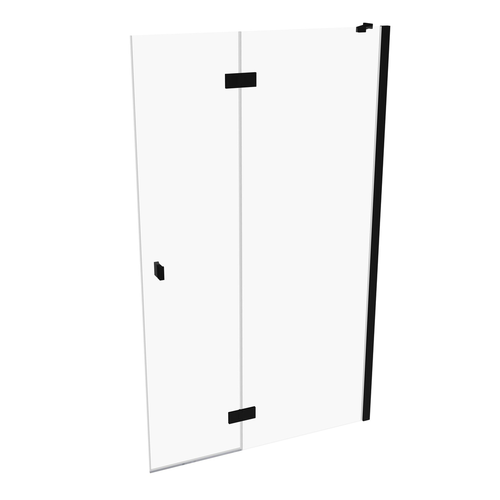

- individual RAL colors also available as profile color on request

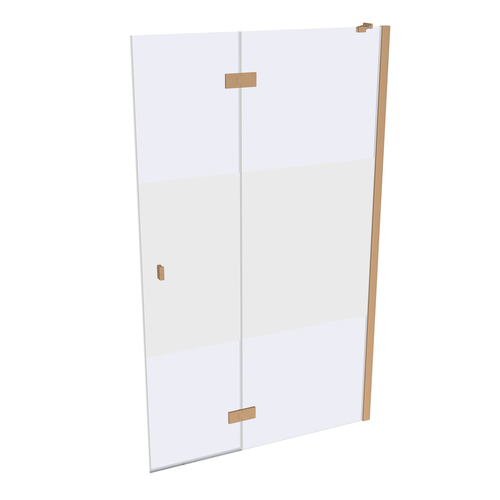

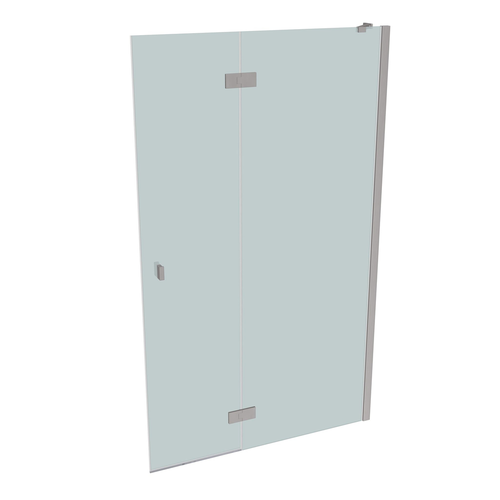

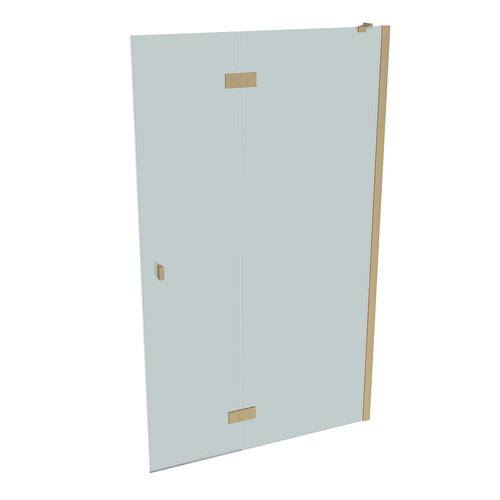

- Other glass/decors available on request (gray, bronze, mirror glass, Liquid sandblast decor, Nature sandblast decor)

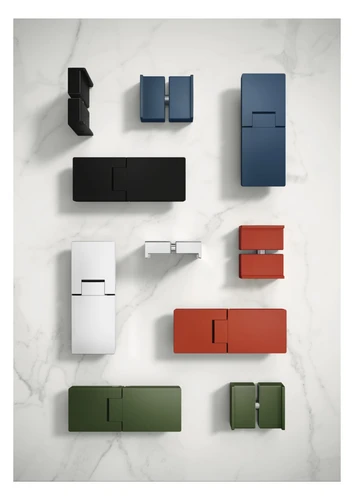

- Handle available on request from the HU?PPE range (bow handle only in color 092 silver high gloss)
Assembly condition: partially assembled
Installation accessories: A niche extension set (item no.: S29001 for standard or S29080 for custom-made plus profile color) is required to install the swing door in a niche. Please order separately!
Included in delivery: Fixing material, installation instructions
incl HÜPPE Keder system - installation without visible screws in the area of the wall strip
The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!
A measuring and installation service is recommended for this item!
Information on product safety
Manufacturer:
HÜPPE GmbH
Industriestraße 3
DE-26160 Bad Zwischenahn
