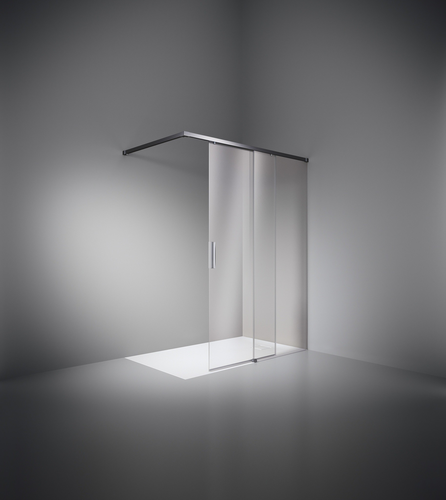

HÜPPE Vita pure

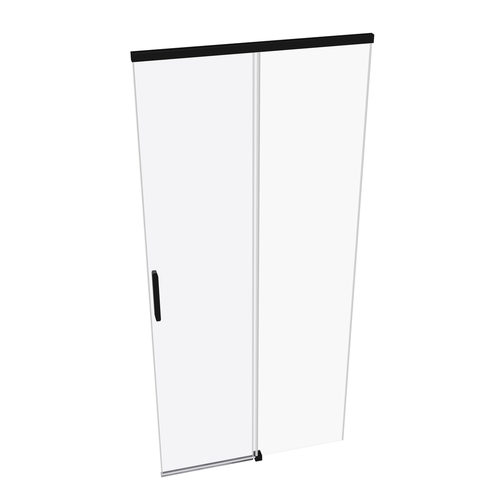

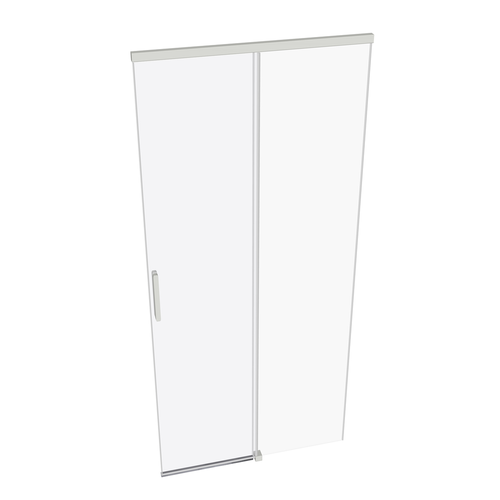

1x frameless 4-corner sliding door 1-piece with fixed segment

Glass profile

• Glazing with 6 mm toughened safety glass ESG

Dimensions

• Height 200cm
• Width fixed panel left: 44 - 45.5 cm
• Width fixed panel right: 44 - 45.5 cm
• Adjustment range standard 4 cm
• Adjustment range in recess 3 cm
• Adjustment range as corner entry 4.5 cm
• Standard bath installation dimensions: 88.5 - 92.5 cm
• Bathtub installation dimension as corner entry: 89 - 93.5 cm
• Bath installation dimension in alcove: 87.5 - 90.5 cm
• Entry width as corner entry: 42.5 cm
• Entry width in recess: 35 cm
• Installation on tiled floor and shower tray possible

Product features

• Frameless door element with one sliding door and one fixed segment
  For installation in recess, as corner entry or as walk-in with sliding door element
• Filigree guide rail (32 mm height)
• With HÜPPE clamping screw system for easy installation
• High-quality ball bearing mounted double castors with elegant chrome applications
• Sliding door segments can be unhooked inwards for easy cleaning
• Left/right attachment
• Bow handle
• Installation type: without wall rail
• Assembly condition: partially assembled

Scope of delivery:

Included in delivery: Fastening material, assembly instructions

ATTENTION: Complete corner entry consists of two item no. and one corner entry set.

To install the sliding door in a recess, a recess extension set is required (item no.: VA2301 for 2000mm height, item no.: VA2302 for 2200mm height or item no.: VA2380 for made-to-measure). A corner entry extension set (item no.: VA2201 for a width less than 1001mm or item no. VA2202 for a width greater than 1000mm) is required for installation as a corner entry.

Please order separately!

Attention: Installation as a corner entry is possible up to a maximum width of 1400 mm.

Please note: The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!

A measuring and installation service is recommended for this item!
