HÜPPE Vita pure

1x partially framed 4-corner sliding door 1-piece with fixed segment

Glass profile

• Glazing with 6 mm toughened safety glass ESG

Dimensions

• Height 200cm
• Width fixed panel left: 69 - 70.5 cm
• Width fixed panel right: 69 - 70.5 cm
• Adjustment range standard 4 cm
• Adjustment range in niche 3 cm
• Adjustment range with side panel 4 cm
• Adjustment range as corner entry 4.5 cm
• Standard bath installation dimensions: 138.5 - 142.5 cm
• Bathtub installation dimension as corner entry: 139 - 143.5 cm
• Bath installation dimensions in alcove: 137.5 - 140.5 cm
• Bath installation dimensions with side panel: 138 - 142 cm
• Entry width as corner entry: 83.7 cm
• Entry width in alcove: 60 cm
• Entry width side wall: 56.8 cm
• Installation on tiled floor and shower tray possible

Product features

• Partially framed door element with one sliding door segment and one fixed segment
• For installation in recess, as corner entry, with side panel or as walk-in with sliding door element
• Incl. HÜPPE Keder system - installation without visible screws in the area of the wall rail
• Wall strip always with option to install the HÜPPE Select+ organizer
• Left/right fixing
• Filigree guide rail (32 mm height)
• With HÜPPE clamping screw system for easy installation
• High-quality double castors with ball bearings and elegant chrome applications
• Sliding door segments can be unhooked inwards for easy cleaning

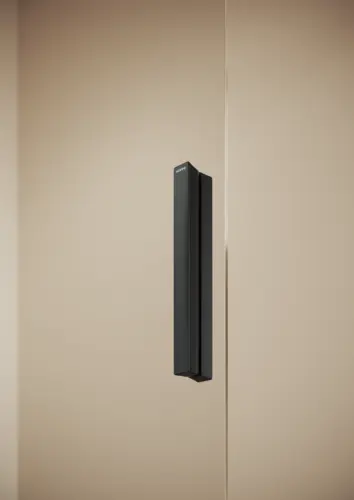

• Bow handle
• Installation type: with wall rail
• Assembly status: partially assembled

Scope of delivery:

Included in delivery: Fastening material, assembly instructions

ATTENTION: Complete corner entry consists of two item no. and one corner entry set.

For installation of the sliding door in a recess, a recess extension set is required (art. no.: VA2301 for 2000 mm height, art. no.: VA2302 for 2200 mm height or art. no.: VA2380 for made-to-measure). A corner entry extension set (item no.: VA2201 for a width less than 1001mm or item no. VA2202 for a width greater than 1000mm) is required for installation as a corner entry.

Please order separately!

Attention: Installation as a corner entry is possible up to a maximum width of 1400 mm.

Please note: The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!

A measuring and installation service is recommended for this item!
