HÜPPE Vita pure
1x partially framed 4-corner sliding door 1-piece with fixed segment
Glass profile
- Glazing with 6 mm toughened safety glass ESG
Dimensions
- Height 200cm
- Width fixed panel left: 44 - 45.5 cm
- Width fixed panel right: 44 - 45.5 cm
- Adjustment range standard 4 cm
- Adjustment range in niche 3 cm
- Adjustment range with side panel 4 cm
- Adjustment range as corner entry 4.5 cm
- Standard bath installation dimensions: 88.5 - 92.5 cm
- Bathtub installation dimension as corner entry: 89 - 93.5 cm
- Bath installation dimensions in alcove: 87.5 - 90.5 cm
- Bath installation dimensions with side panel: 88 - 92 cm
- Entry width as corner entry: 42.5 cm
- Entry width in alcove: 35 cm
- Entry width side wall: 31.8 cm
- Installation on tiled floor and shower tray possible
Product features
- Partially framed door element with one sliding door segment and one fixed segment
- For installation in recess, as corner entry, with side panel or as walk-in with sliding door element
- Incl. HÜPPE Keder system - installation without visible screws in the area of the wall rail
- Wall strip always with option to install the HÜPPE Select+ organizer
- Left/right fixing
- Filigree guide rail (32 mm height)
- With HÜPPE clamping screw system for easy installation
- High-quality double castors with ball bearings and elegant chrome applications
- Sliding door segments can be unhooked inwards for easy cleaning

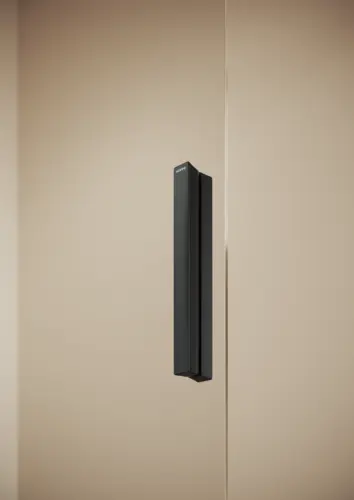

- Bow handle
- Installation type: with wall rail
- Assembly status: partially assembled
Scope of delivery:
Included in delivery: Fastening material, assembly instructions
ATTENTION: Complete corner entry consists of two item no. and one corner entry set.
For installation of the sliding door in a recess, a recess extension set is required (art. no.: VA2301 for 2000 mm height, art. no.: VA2302 for 2200 mm height or art. no.: VA2380 for made-to-measure). A corner entry extension set (item no.: VA2201 for a width less than 1001mm or item no. VA2202 for a width greater than 1000mm) is required for installation as a corner entry.
Please order separately!
Attention: Installation as a corner entry is possible up to a maximum width of 1400 mm.
Notes: The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!
A measuring and installation service is recommended for this item!
Manufacturer:
HÜPPE GmbH
Industriestraße 3
DE-26160 Bad Zwischenahn
E-mail:
hueppe@hueppe.com
**Badquadrat Shop Price without additional discount
Artikel zum Warenkorb hinzugefuegt
Hüppe Vita pure partially framed 4-corner sliding door 1-piece with fixed segment, width: 90cm, height: 200cm, fixing left & right, VA0003
2-3 Weeks
