description

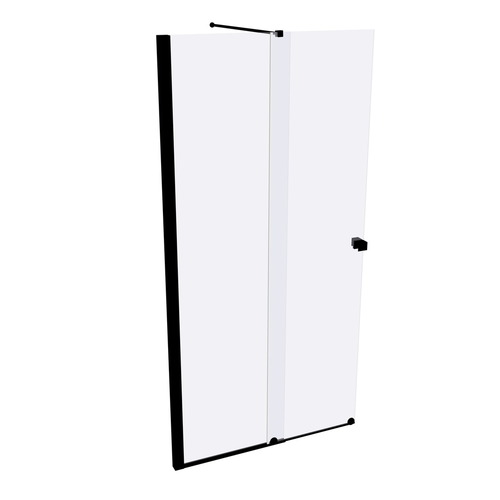

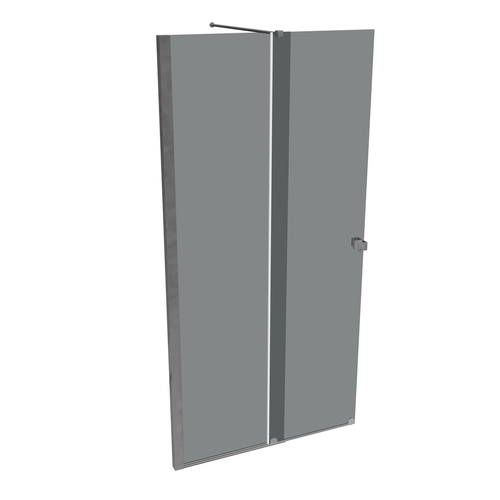

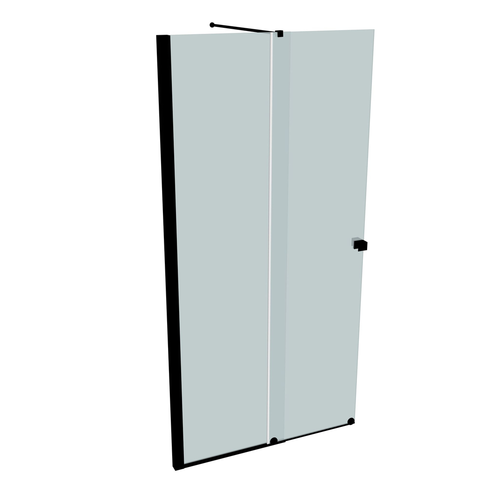

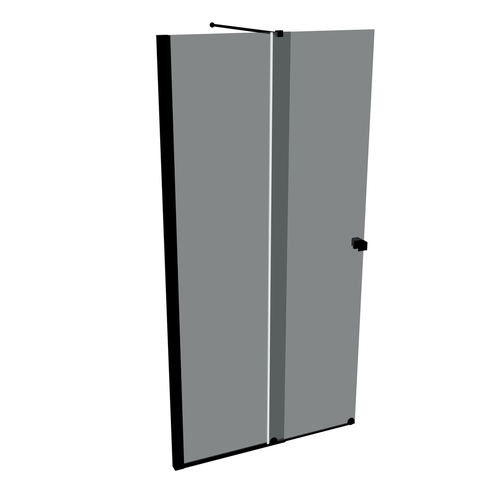

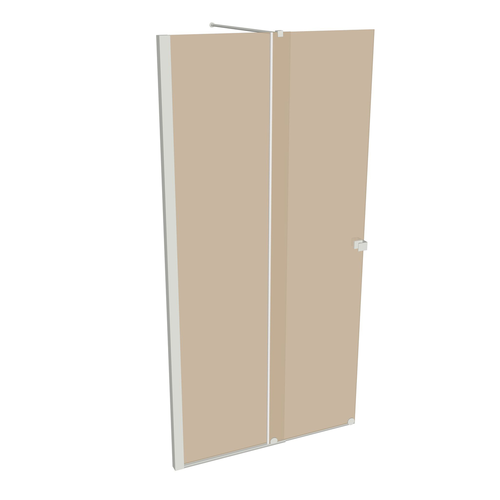

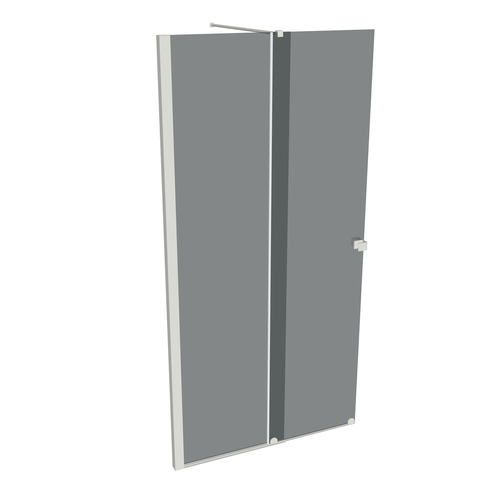

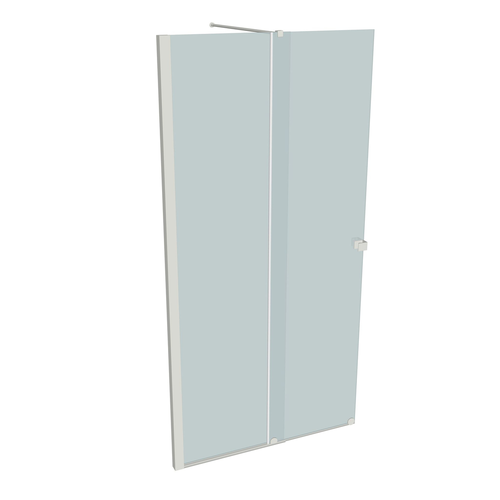

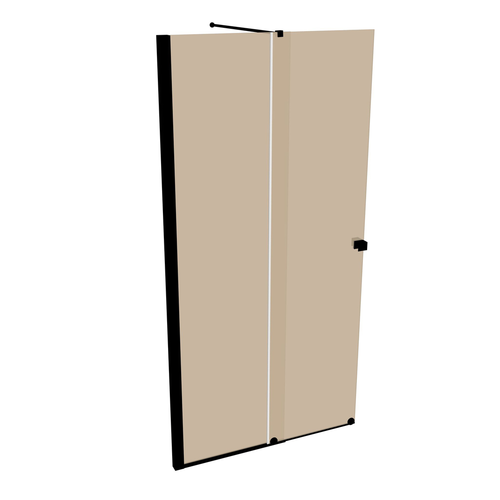

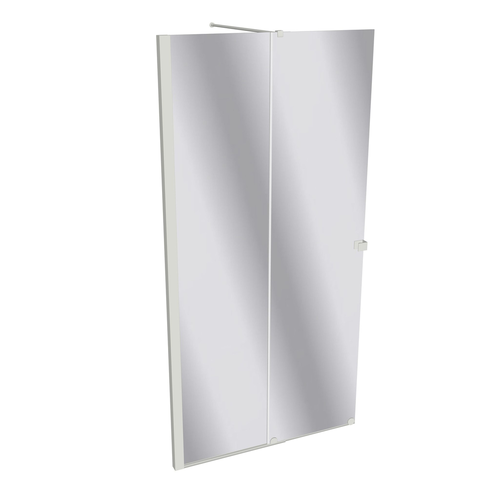

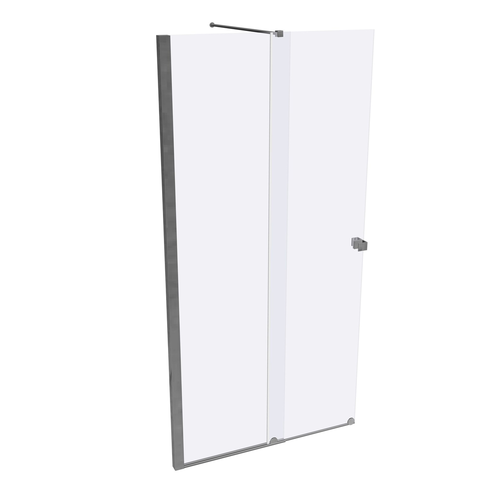

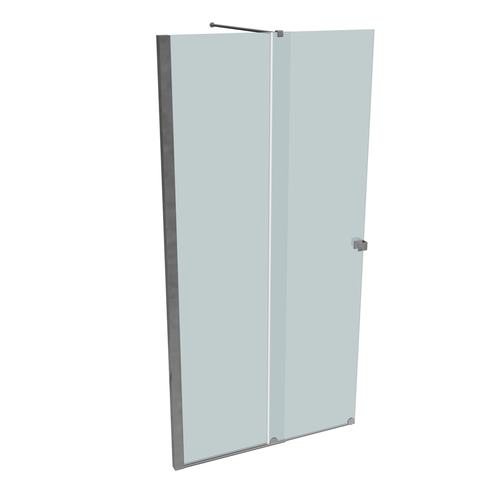

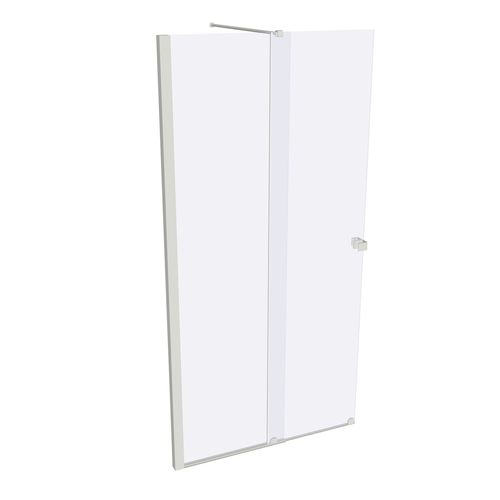

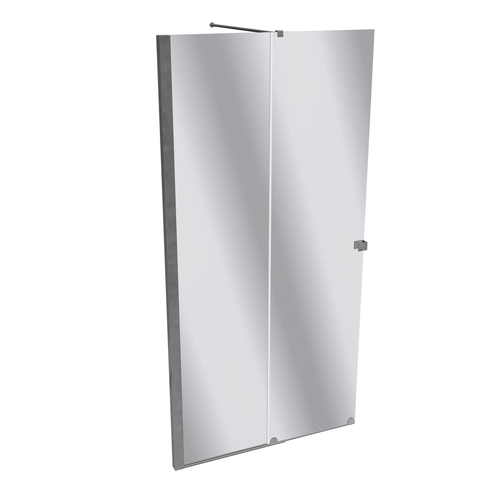

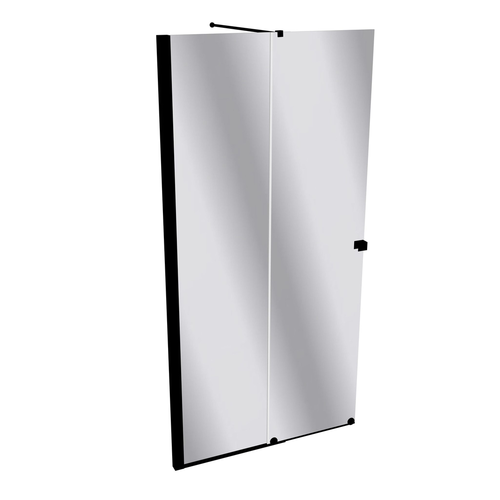

- Hüppe Xtensa pure
- 1x sliding door 1-piece, walk-in, 4-corner, made to measure
Product features:
- stand-alone, for installation in a niche
- for combination with side panel
- partially framed walk-in with one sliding door segment
- opening to one side
- with a partially framed fixed segment
- with 90-degree crossbar
- Particularly slim aluminum wall profile
- Adjustment option in the wall profile 12mm
- additional up to 200mm over the overlapping glass elements
- Roller system flush on the inside - easy cleaning
- Rollers are screwed flush on the inside and can be adjusted in height
- with floor profile (height 10mm)
- Continuous magnetic strips and sealing profiles
- Handle: design handle
- floor-level installation possible
- For installation on shower tray and tiled floor
- Left-hand fastening
- Installation status: partially assembled
Glazing:
- Glazing (door): 8 mm toughened safety glass
- Glazing (fixed segment): 6 mm toughened safety glass
- Toughened safety glass according to DIN EN 12150
- optionally with the easy-care surface finish HÜPPE Anti-Plaque
Dimensions:
- Adjustment range standard: 32 mm
- Width: 1000-1800 mm
- Height: 2001-2200 mm
Scope of delivery:
- Sliding door (walk-in) 1-piece, fixing material, cleaning tools and installation instructions
- incl. HÜPPE Keder system - installation without visible screws in the area of the wall strip
Optional accessories - to be ordered separately:
- Select+ wall rail and ceiling binding can be ordered optionally
- For installation of the sliding door in a recess, a recess extension set, made to measure (art. no. XT0480) is required.
- The items listed are not included in the scope of delivery, please order separately!
Note:
A level/flat surface of 50 mm must be available.
Due to the made-to-measure production, Hüppe must take measurements. The measurement service is available in Germany and Austria.
Information on product safety
Manufacturer:
HÜPPE GmbH
Industriestraße 3
DE-26160 Bad Zwischenahn
E-mail:
hueppe@hueppe.com
