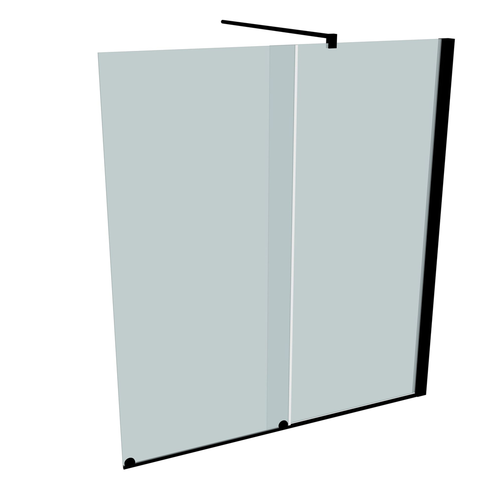

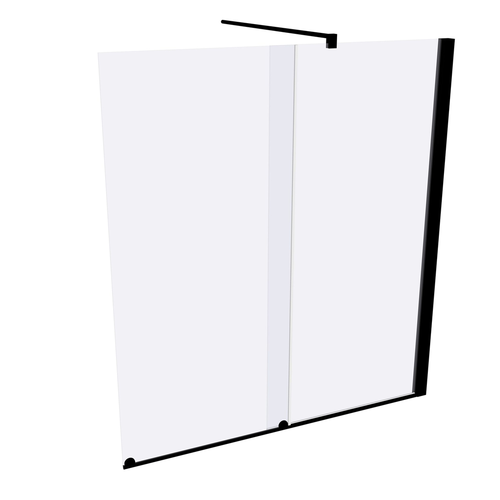

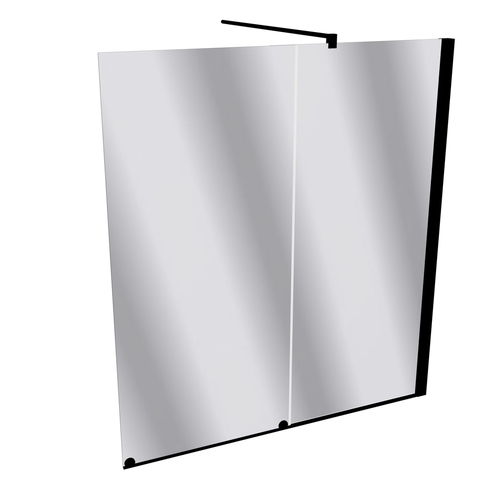

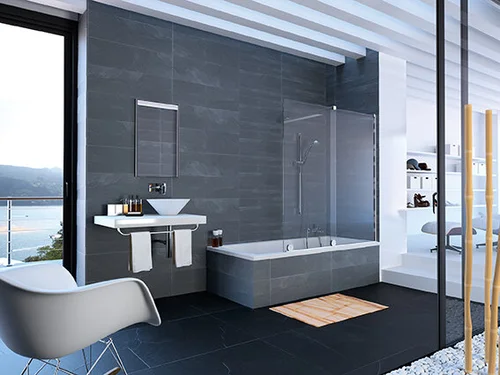

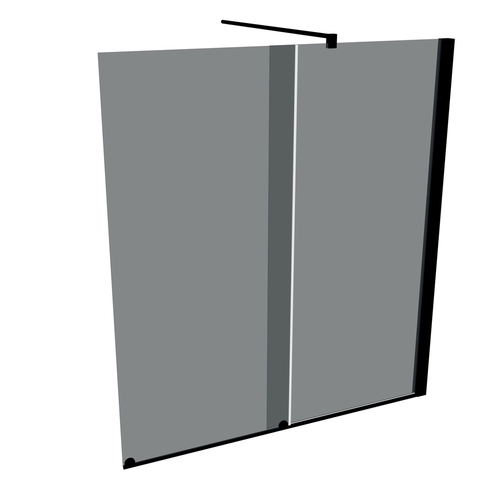

• Hüppe Xtensa pure
• 1x sliding door 1-piece, 4-corner, made to measure

Product features:

• for installation on a bathtub
• partially framed system with one sliding door segment
• opening to one side
• with one fixed segment
• particularly slim wall profile made of aluminum
• Adjustment option in the wall profile 12mm
• additional up to 200mm over the overlapping glass element
• with stabilizer (inside)
• Easy cleaning due to flush-mounted roller system on the inside
• Rollers are screwed flush on the inside and can be adjusted in height
• with floor profile (height 10mm)
• Continuous magnetic strips and sealing profiles
• Handle: without handle
• floor-level installation possible
• For installation on shower tray and tiled floor
• right-hand fastening
• Installation status: partially assembled

Glazing:

• Glazing (door): 8 mm toughened safety glass
• Glazing (fixed segment): 6 mm toughened safety glass
• Toughened safety glass according to DIN EN 12150
• optionally with the easy-care surface finish HÜPPE Anti-Plaque

Dimensions:

• Adjustment range standard: 32 mm
• Width: 700-1400 mm
• Height: 1200-1500 mm

Scope of delivery:

• 1-piece sliding door, fixing material, cleaning tools and installation instructions
• incl. HÜPPE Keder system - installation without visible screws in the area of the wall strip

Optional accessories - to be ordered separately:

• optional comfort handle Xtensa and ceiling binding available
• The items listed are not included in the scope of delivery, please order separately!

Please note:

• at least a flat/flat surface of 50mm and a wall edge width or floor area of 50mm is required for installation.

• Due to the made-to-measure production, a measurement by Hüppe is required. The measurement service is available in Germany and Austria.
