description

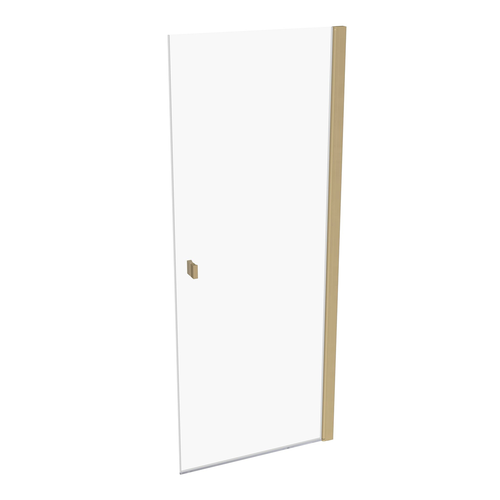

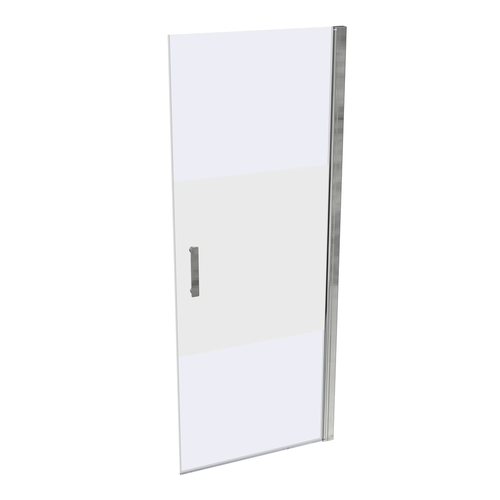

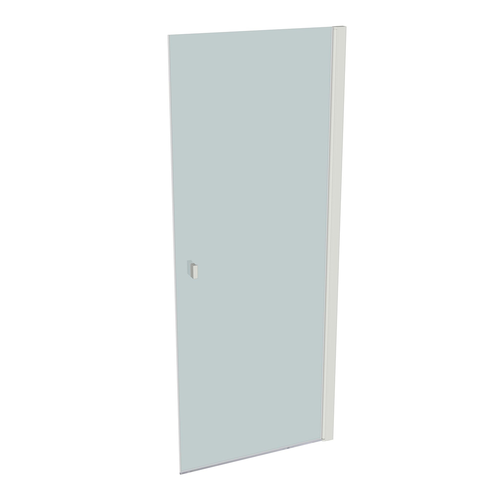

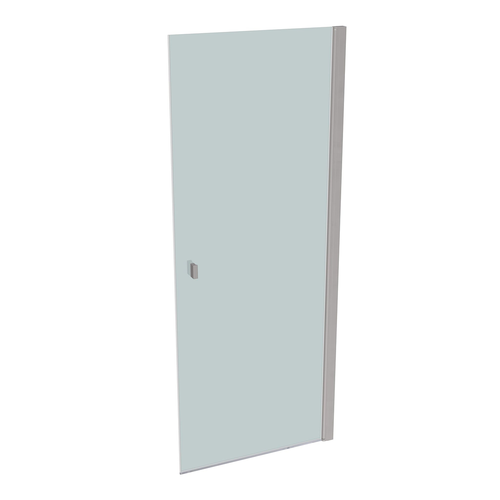

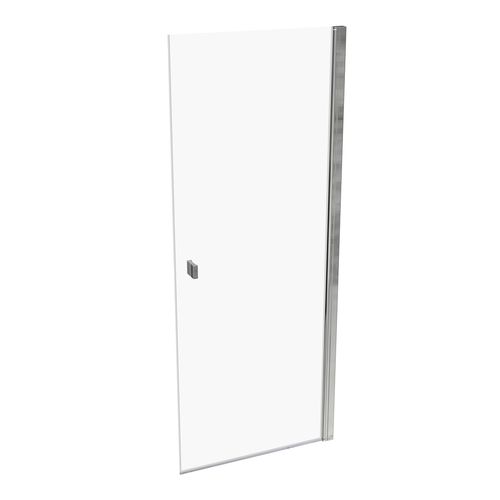

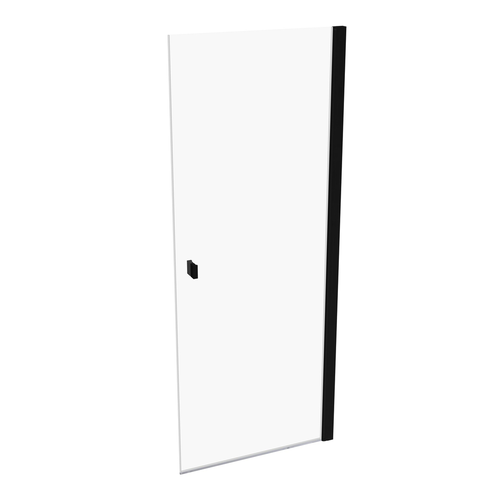

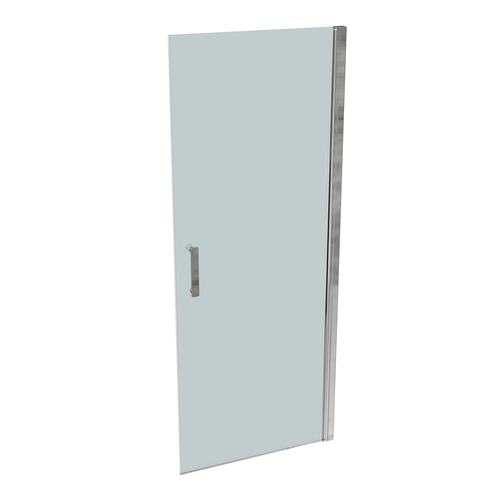

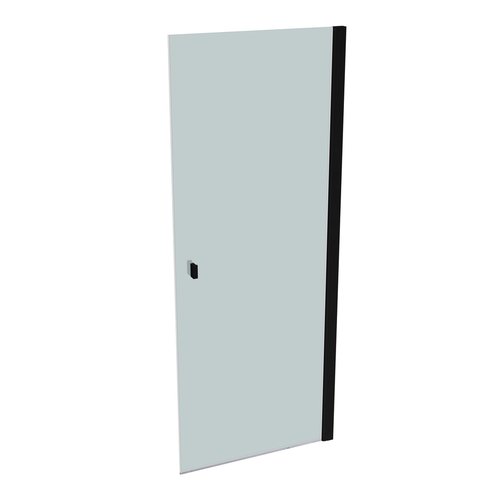

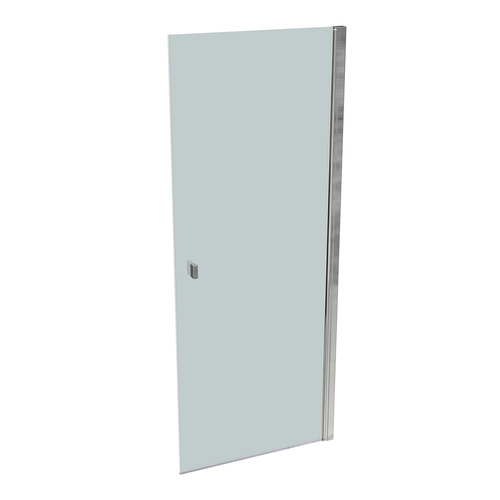

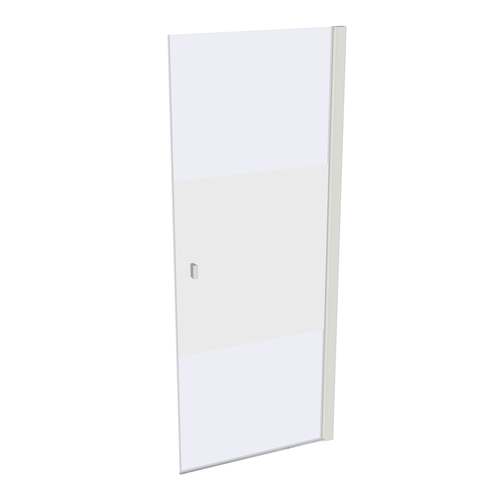

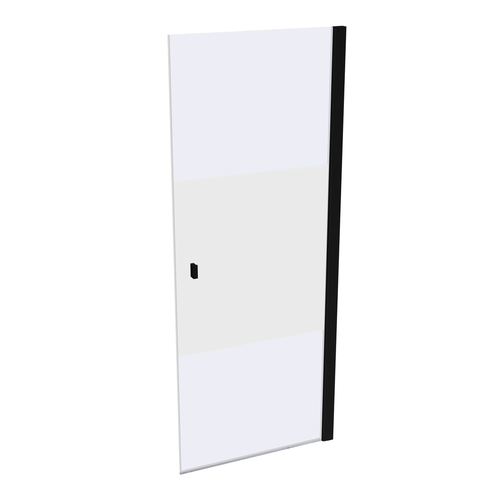

- Hüppe SolvaPro
- 1x partially framed swing door, 4-corner
Product features:
- For installation in a niche or combination with SolvaPro side panel
- Installation on shower tray or tiled floor possible
- Partially framed door with one glass panel, opening inwards and outwards
- Glazing with 8 mm toughened safety glass in accordance with DIN EN 12150, optionally with the easy-care HÜPPE Anti-Plaque surface finish
- Profiles made of high-quality anodized aluminium, handle made of high-quality metal
- Tubular hinge with infinitely adjustable lifting and lowering mechanism and 5 mm lifting effect
- With threshold protection strip (height 10 mm) for optimum tightness, or can be installed without thresholds
- Adjustment option in the 15 mm wall profile
- Continuous magnetic strips and sealing profiles, as well as water-repellent horizontal sealing strip
- Sloping possible (on request/surcharge)
- Right-hand fixing
- Installation condition: partially assembled
Dimensions
- Handle: Comfort handle - impresses with reduced design, optimally matched to the hinges
- Adjustment range in recess 3 cm
- Adjustment range with side panel 1.5 cm
- Bath installation dimension in recess: 98.5 - 101.5 cm
- Bath installation dimension with side panel: 98.5 - 100 cm
- Entry width as corner entry: 124.2 cm
- Entry width in recess: 88.5 cm
- Entry width side wall: 88.5 cm
Colors/finish:
- individual RAL colors also available as profile color on request
- Other glass/decors available on request (gray, bronze, mirror glass, Liquid sandblast decor, Nature sandblast decor)
- Included in the scope of delivery: Fastening material, installation instructions
- Installation accessories : A niche extension set (item no.: S29001 for standard or S29080 for custom-made plus profile color) is required to install the swing door in a niche. Please order separately!
- The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!
- A measuring and installation service is recommended for this item!
