description

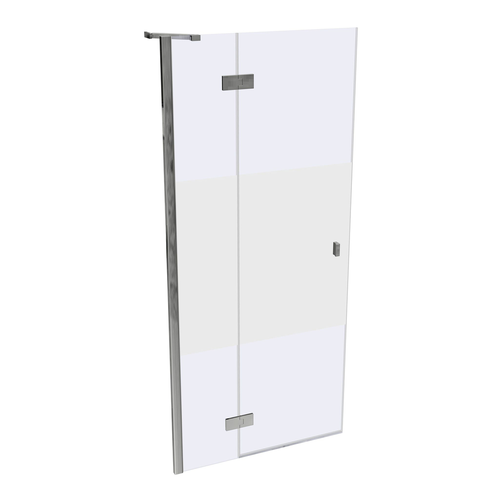

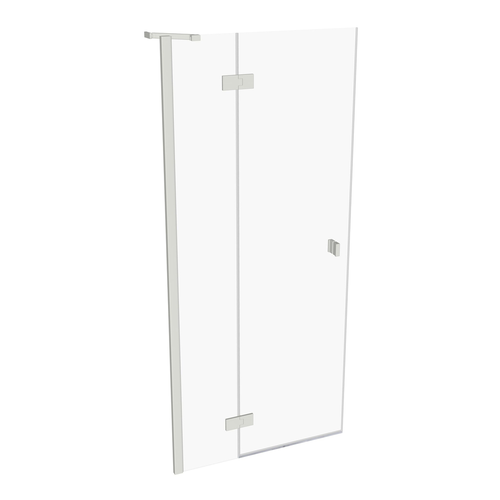

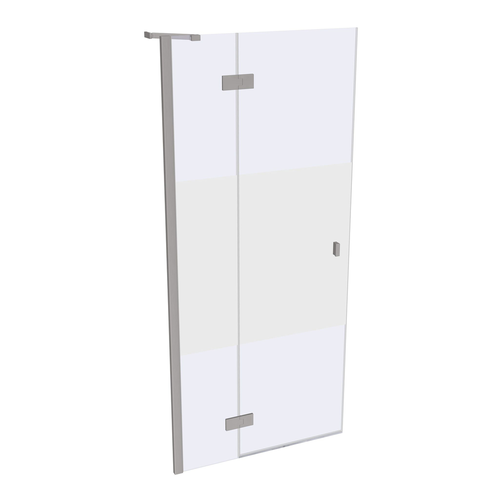

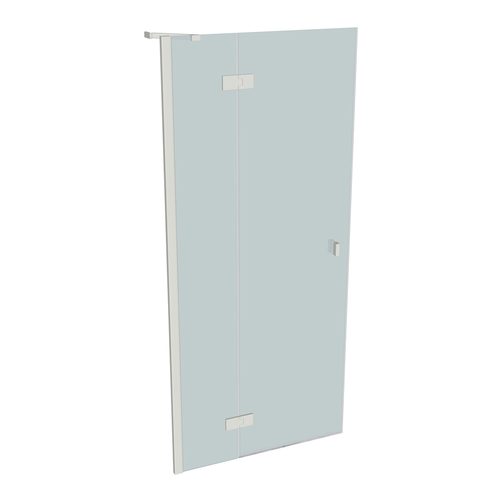

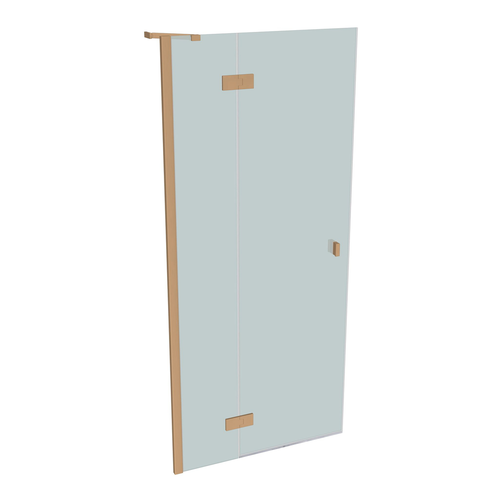

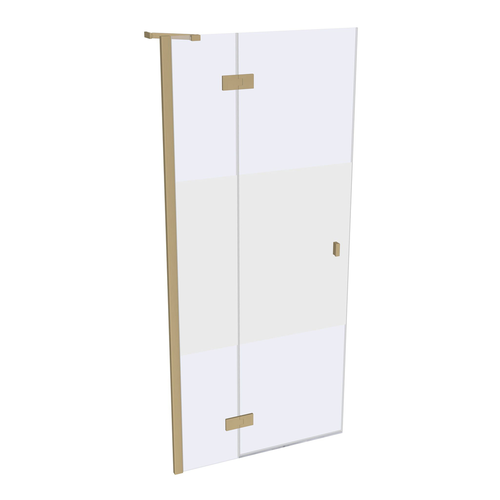

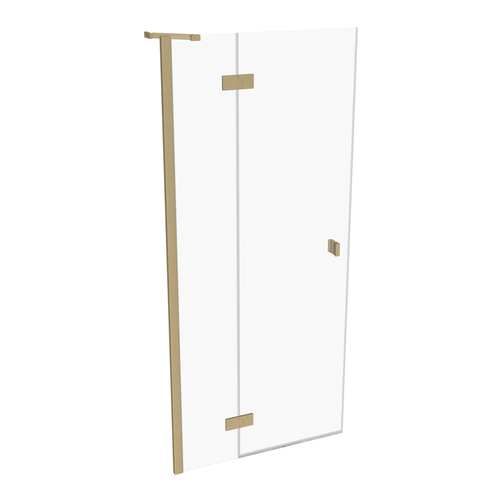

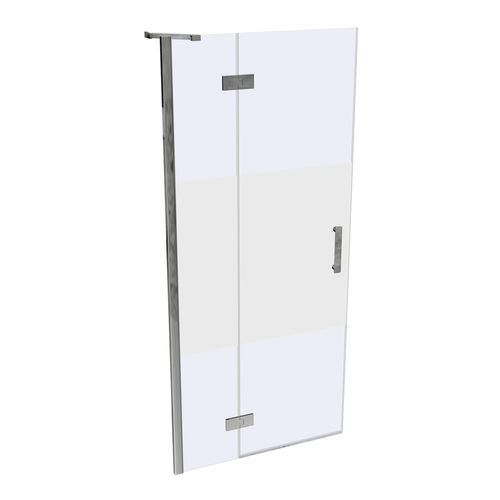

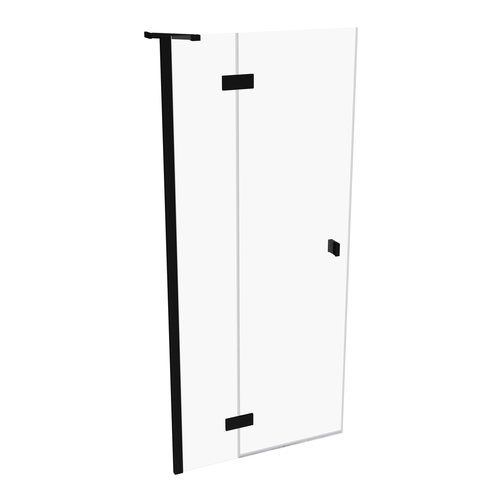

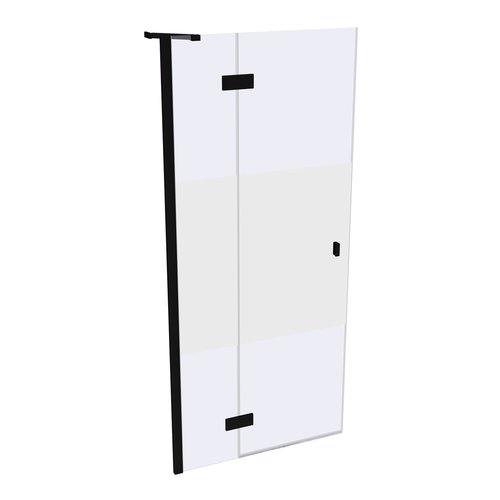

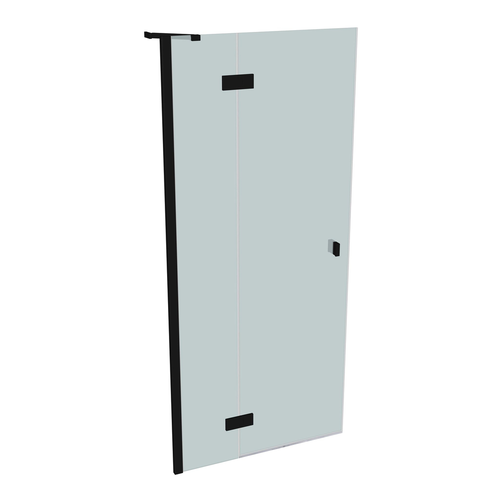

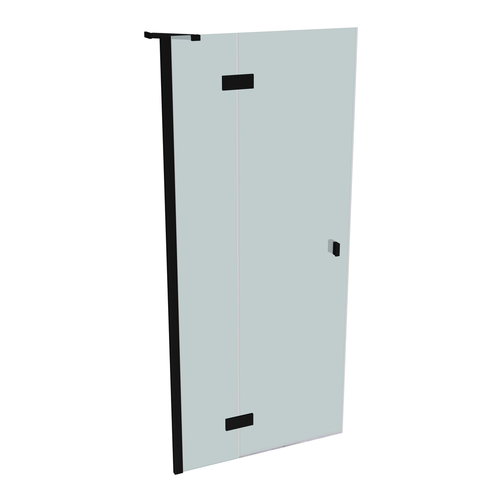

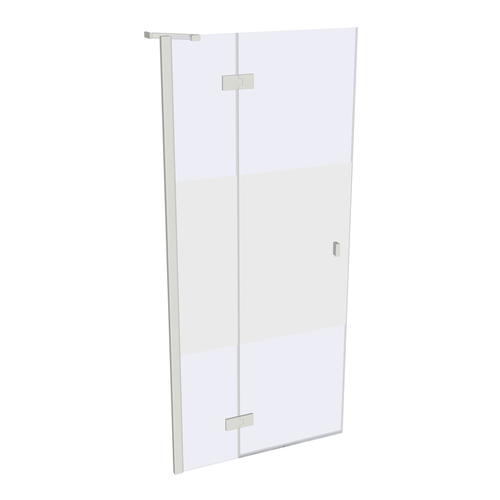

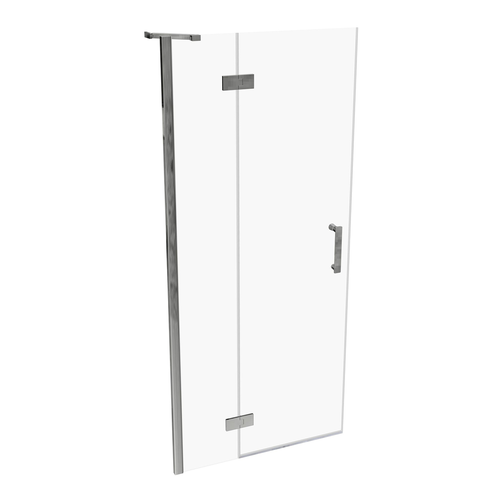

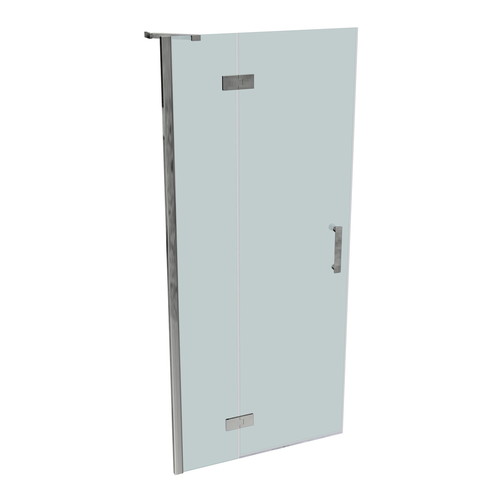

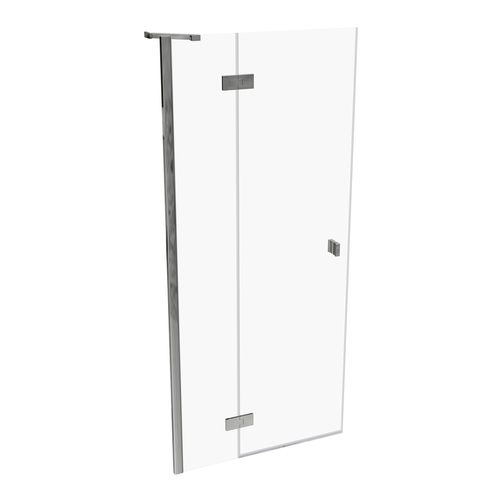

- Hüppe SolvaPro
- 1x pivot door partially framed, 4-corner, with fixed segment
Product features:
- For installation in a recess or combination with SolvaPro side panel
- Partially framed door with one glass panel, opening inwards and outwards, with one fixed segment
- Glazing with 8 mm toughened safety glass to DIN EN 12150, optionally with the easy-care HÜPPE Anti-Plaque surface finish
- Profiles made of high-quality anodized aluminium, handles and hinges made of high-quality metal
- Adjustment option in wall profile 15 mm
- Raise/lower mechanism of the hinge discreetly concealed behind a cap
- Fittings flush with the inside surface for easy cleaning
- With threshold protection strip (height 10 mm) for optimum tightness, or can be installed without thresholds
- Continuous magnetic strips and sealing profiles, as well as water-repellent horizontal sealing strip
- Can be installed on shower tray or tiled floor
- With stabilizer (inside)
- Sloping / cut-outs possible (on request/surcharge)
- Fittings with lift/lower mechanism and flush with the glass surface on the inside
- Handle: Comfort handle
- Left-hand fixing
Dimensions:
- Width of fixed panel: 26.1 - 27.6 cm
- Adjustment range in recess 3 cm
- Adjustment range with side panel 1.5 cm
- Bath installation dimension in recess: 88.5 - 91.5 cm
- Bath installation dimension with side panel: 88.5 - 90 cm
- Entry width in alcove: 57 cm
- Entry width side panel: 57 cm
Installation status: partially assembled
Installation accessories: A niche extension set (item no.: S29001 for standard or S29080 for custom-made plus profile color) is required to install the swing door in a niche. Please order separately!
Included in delivery: Fixing material, installation instructions
incl HÜPPE Keder system - installation without visible screws in the area of the wall strip
The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!
A measuring and installation service is recommended for this item!
