description
- Hüppe Xtensa pure
- 1 x Walk-in sliding door
Product features:
- for installation on shower tray and tiled floor

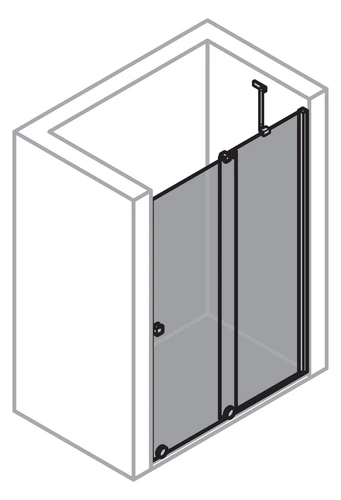

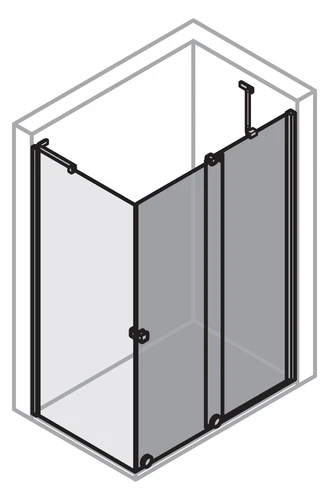

- Stand-alone, for installation in a niche or for combination with side panel
- Partially framed walk-in with one sliding door segment
- opening to one side
- One partially framed, fixed segment
- Glazing 6mm (fixed segment) and 8mm (door) toughened safety glass
- optionally with easy-care HÜPPE Anti-Plaque surface finish
- with 45° stabilizer (inside)

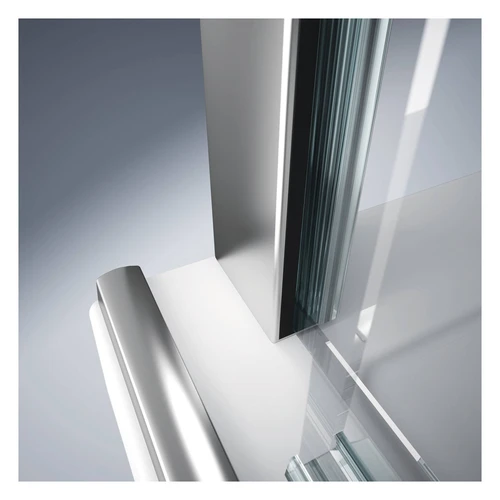

- Slim wall profile on aluminum
- Adjustment option in the wall profile 12mm, additionally up to 200mm over the overlapping glass elements

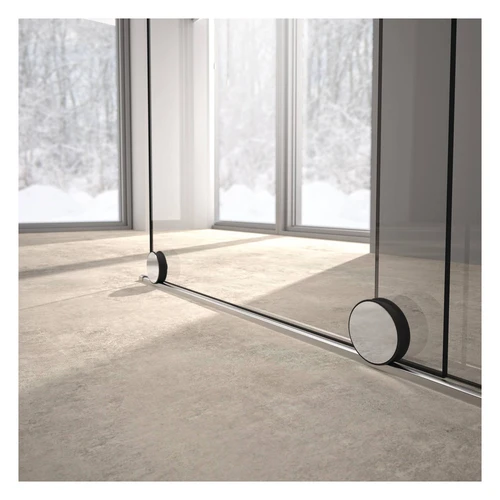

- Easy cleaning due to flush-mounted roller system on the inside
- Rollers are screwed flush on the inside and can be adjusted in height
- Floor profile (height 10mm)
- Continuous magnetic strips and sealing profiles
- Fastening on the right
Dimensions:
- Adjustment range standard: 3.2cm
- Standard bath installation dimensions: 118.8cm to 140cm
- Bath installation dimension in recess: 120.5cm to 141.7cm
- Bath installation dimension with side panel: 122.4 to 143.6 cm
- Entry width in recess: 42.2cm to 62.1cm
- Entry width with side panel: 40.3cm to 60.2cm

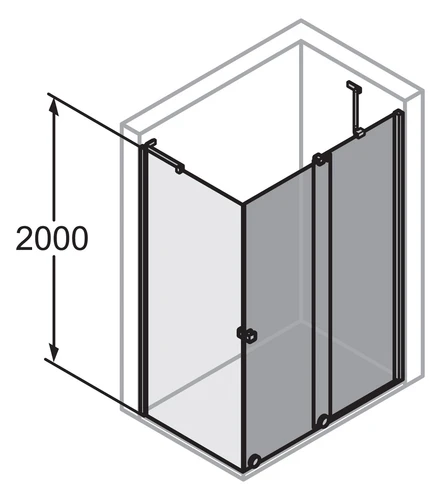

- Height: 200cm
The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!
A measuring and installation service is recommended for this item!
Scope of delivery:
- incl. fixing material, cleaning tools and installation instructions
- incl. HÜPPE Keder system - installation without visible screws in the area of the wall strip
Installation accessories:
- A niche extension set (item no. XT0401) is required to install the sliding door in a niche. Please order separately!
- Select+ wall rail and ceiling connection can be ordered optionally
Information on product safety
Manufacturer:
HÜPPE GmbH
Industriestraße 3
DE-26160 Bad Zwischenahn
E-mail:
hueppe@hueppe.com
