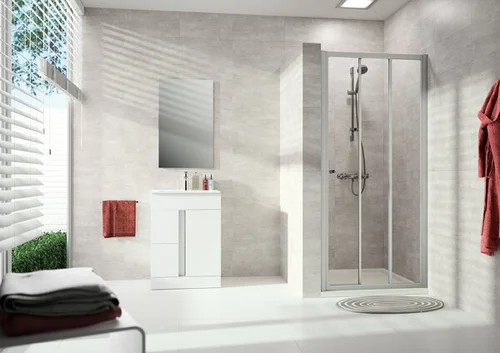

- Hüppe Alpha 2
- 1 x sliding door, 4-corner, partially framed
Product features:
- 2-part
- for installation in a recess
- for combination with Alpha 2 side panel
- Partially framed door with two sliding door segments
- opening to one side
- with one fixed segment
- Profiles made of high-quality anodized aluminium
- Knob handle made of chrome-plated plastic
- Knob handle in high-gloss silver
- Adjustment option in the wall profile 25mm
- in combination with side panel 20mm on handle side
- Sliding door segments can be unhooked inwards - for easy cleaning
- Ball bearing mounted double castors with chrome applications
- with base profile (height 41mm)
- Continuous magnetic strips and sealing profiles
- Suitable for installation on shower trays and tiled floors
- Handle: knob handle
- installation at floor level possible
- Left and right-hand mounting
- Installation status: partially assembled
Glazing:
- Glazing (door): 5mm toughened safety glass
- Glazing (fixed segment): 4mm toughened safety glass
- Toughened safety glass according to DIN EN 12150
- optionally with the easy-care Hüppe Anti-Plaque surface finish
Dimensions:
- Height: 1900 mm
- Adjustment range in recess: 50 mm
- Adjustment range in side panel: 45 mm
- Bath installation dimension in recess: 720-770 mm
- Bath installation dimension in side wall: 735-780 mm
- Width of fixed panel: 214-239 mm
- Access width: 321 mm
- for installation on tiled floor:
- Installation dimension (center of glass) niche: 720-770 mm
- Installation dimension (center of glass) side wall: 715-760 mm
Scope of delivery:
- 2-piece sliding door, fixing material and installation instructions
- incl. HÜPPE Keder system - installation without visible screws in the area of the wall strip
Optional mounting accessories:
- For widening by 15mm for a wall rail width of 30.4mm
- the widening profile (item no.: 141001 for 1900mm height and item no.: A21005 for 2000mm height) can be used.
- Please order separately!
- Installation in U-shape possible, U-cabin bracket set required.
- U-cabin bracket set not included, please order separately!
Please note:
- The specified dimensions of the shower enclosure only refer to installation on shower trays.
- For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!
- A measuring and installation service is recommended for this item!
Manufacturer:
HÜPPE GmbH
Industriestraße 3
DE-26160 Bad Zwischenahn
E-mail:
hueppe@hueppe.com
